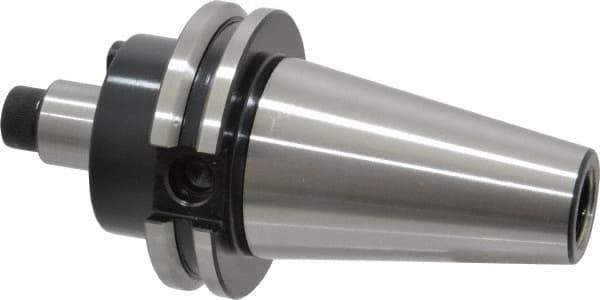

Parlec - CAT40 Taper Shank 3/4" Pilot Diam Shell Mill Holder - 1.38" Flange to Nose End Projection, 1-3/4" Nose Diam, 3/8-24 Lock Screw
Item #: 08147159
Brand: Parlec
Model #: C40-75SM1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Pilot Diameter (Inch) | 3/4 |
| Pilot Diameter (Decimal Inch) | 0.7500 |
| Projection Flange to Nose End (Decimal Inch) | 1.3800 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 1.7500 |
| Balanced to (RPM) | 30000 |
| Shell Mill Cutting Diameter Range (Inch) | 1-3/4 - 2 |
| TIR (Decimal Inch) | 0.0002 |
| Lock Screw Thread Size | 3/8-24 |
