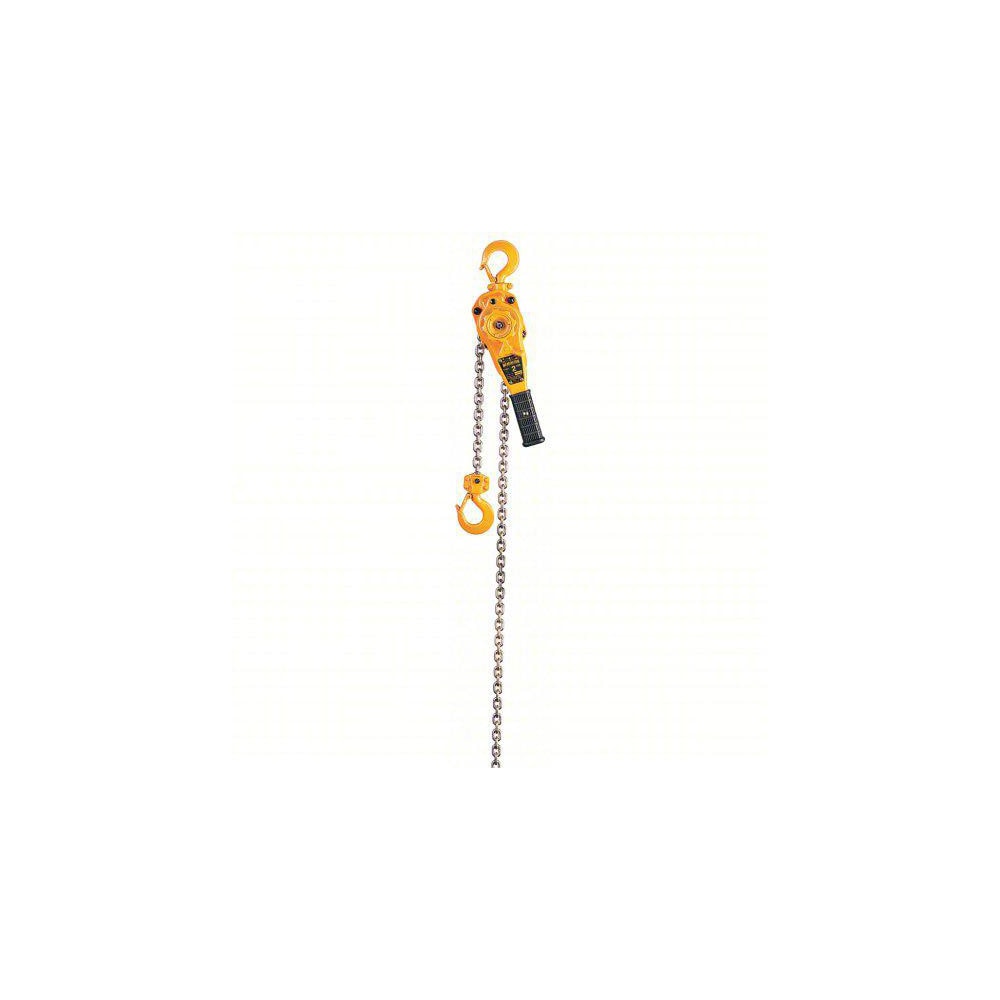

Manual Lever Hoist: 4000 lb Capacity, 15' Max Lift
Item #: 75340927
Brand: Harrington Hoist
Model #: L5LB-020-15
Product Specifications
| Hoist Type | Lever |
| Lift Mechanism | Chain |
| Lifting Material | Chain |
| Capacity (Lb.) | 4000 |
| Pull Capacity | 4000 |
| Maximum Lift Distance | 15 ft |
| Minimum Headroom | 14.8 in |
| Lever Force to Operate Hoist | 59 |
| Maximum Headroom | 14.8 in |
| Chain Length | 16 ft |
| Lift Height (Feet) | 15 |
| Lift Height (Fractional Inch) | 180 |
| Distance Between Hooks | 14.8 in |
| Mount Type | Hook (Without Trolley) |
| Overall Depth | 6.8 in |
| Overall Width | 5.9 in |
| Hoist Overload Protection | No |
| Hook Material | Steel |
| Includes | Hoist; Top Hook, Bottom Hook |
| Standards | ASME B30.21 |
| Handle Length (Decimal Inch) | 10.4 |
| Number of Strands of Load Chain | 1 |
| Minimum Distance Between Hooks (Inch) | 14.8 |
| PullToLiftLoadLbs | 59 |
| Number Of Chains | 1 |
| UNSPSC Code | 24101602 |
| Hoist Type | Lever |
| Lift Mechanism | Chain |
| Lifting Material | Chain |
| Capacity (Lb.) | 4000 |
| Pull Capacity | 4000 |
| Maximum Lift Distance | 15 ft |
| Minimum Headroom | 14.8 in |
| Lever Force to Operate Hoist | 59 |
| Maximum Headroom | 14.8 in |
| Chain Length | 16 ft |
| Lift Height (Feet) | 15 |
| Lift Height (Fractional Inch) | 180 |
| Distance Between Hooks | 14.8 in |
| Mount Type | Hook (Without Trolley) |
| Overall Depth | 6.8 in |
| Overall Width | 5.9 in |
| Hoist Overload Protection | No |
| Hook Material | Steel |
| Includes | Hoist; Top Hook, Bottom Hook |
| Standards | ASME B30.21 |
| Handle Length (Decimal Inch) | 10.4 |
| Number of Strands of Load Chain | 1 |
| Minimum Distance Between Hooks (Inch) | 14.8 |
| PullToLiftLoadLbs | 59 |
| Number Of Chains | 1 |
| UNSPSC Code | 24101602 |
| MSC Part # | 75340927 |
| Mfr Part # | L5LB-020-15 |
| Country of Origin Country of Origin is subject to change | Japan |
