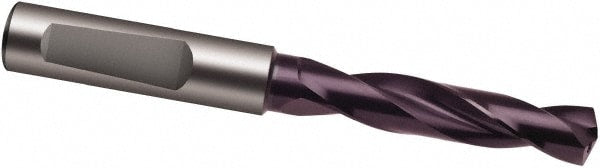

Screw Machine Length Drill Bit: Letter I, 140 deg Point, Solid Carbide
Item #: 53736120
Brand: Guhring
Model #: 9056100069000
Product Specifications
| Drill Bit Size (Letter) | I |
| Drill Bit Size (Decimal Inch) | 0.2720 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Alloy Steel; Stainless Steel; Cast Iron |
| Point Type | 4 Facet |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | 5610 |
| Proprietary Coating/Finish | nano-FIREX |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (mm) | 34.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Designation | DIN |
| Material Grade | K40 |
| UNSPSC Code | 23241635 |
