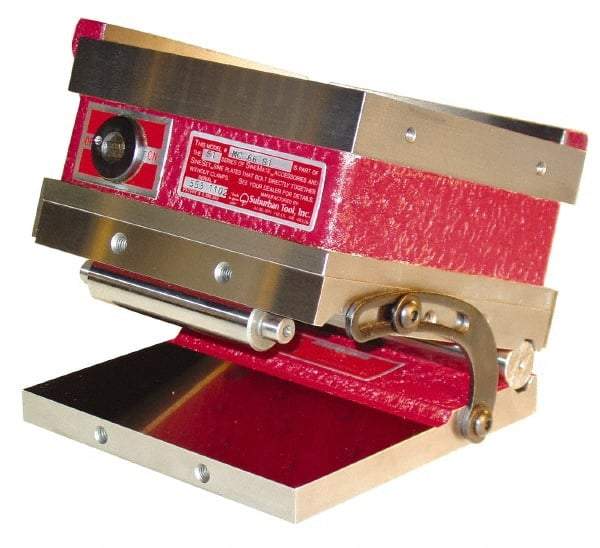

Suburban Tool - 6" Long x 6" Wide x 4-5/8" High, Series S1, Fine Pole, Sine Plate & Magnetic Chuck Combo - 0.0002" Tolerance, Square to 0.0002"
Item #: 08020919
Brand: Suburban Tool
Model #: 0802011/0802041
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Compound | No |
| Sine Series | S1 |
| Magnet Pole Type | Fine Pole |
| Length (Inch) | 6 |
| Width (Inch) | 6 |
| Height (Inch) | 4-5/8 |
| Roll Centerline Distance (Inch) | 5 |
| Parallelism (Decimal Inch) | 0.0002 |
| Squareness (Decimal Inch) | 0.0002 |
| Tolerance (Decimal Inch) | 0.0002 |
