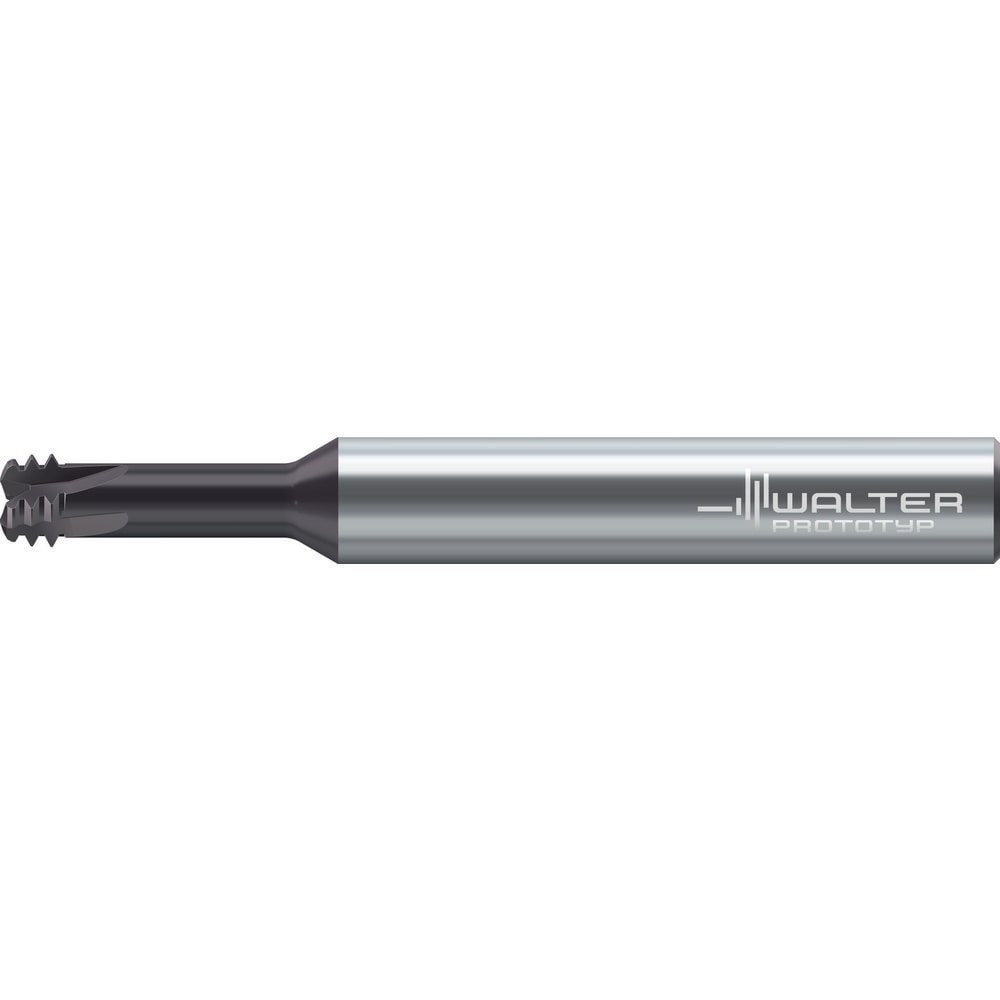

Helical Flute Thread Mill: M2x0.4, Internal, 4 Flute, 6.0000 mm Shank Dia, Solid Carbide
Item #: 56215023
Brand: Walter-Prototyp
Model #: 8404728
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M2x0.4 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Cutting Diameter (mm) | 1.55 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.0610 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0488 |
| Length of Cut (mm) | 1.2400 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 57.0000 |
| Overall Length (Decimal Inch) | 2.2441 |
| Thread Standard | Metric |
| Flute Direction | Left Hand |
| Series | TC685-M-A0D |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M2x0.4 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Cutting Diameter (mm) | 1.55 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.0610 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0488 |
| Length of Cut (mm) | 1.2400 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 57.0000 |
| Overall Length (Decimal Inch) | 2.2441 |
| Thread Standard | Metric |
| Flute Direction | Left Hand |
| Series | TC685-M-A0D |
| Number Of Flutes | 4 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| MSC Part # | 56215023 |
| Mfr Part # | 8404728 |
| Country of Origin Country of Origin is subject to change | Germany |
