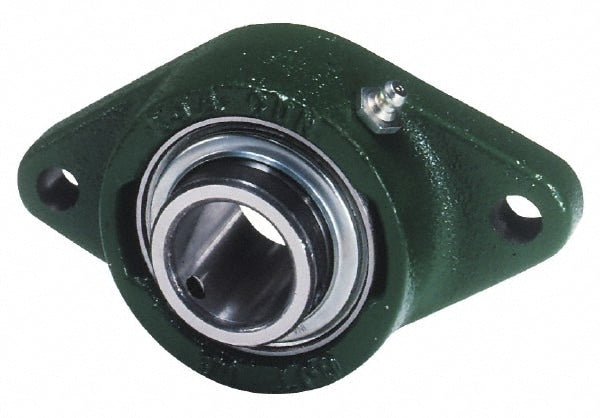

30mm ID, 5.591" OAL x 1.614" OAH 2-Bolt Set Screw Econseal In
Item #: 57132342
Brand: INA Bearing
Model #: PCJTY30
Product Specifications
| Type | 2Bolt Setscrew Econseal In |
| Inside Diameter (mm) | 30.0000 |
| Inside Diameter (Decimal Inch) | 1.1810 |
| Overall Length (Decimal Inch) | 5.5910 |
| Overall Height (Decimal Inch) | 1.6140 |
| Static Load Capacity | 2550.0 |
| Dynamic Load Capacity (Lb.) | 4350 |
| Distance Between Base And Center (mm) | 80.5000 |
| Distance Between Base And Center (Decimal Inch) | 3.1690 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 1.000 |
| Flange Thickness (Decimal Inch) | 0.5120 |
| Type | 2Bolt Setscrew Econseal In |
| Inside Diameter (mm) | 30.0000 |
| Inside Diameter (Decimal Inch) | 1.1810 |
| Overall Length (Decimal Inch) | 5.5910 |
| Overall Height (Decimal Inch) | 1.6140 |
| Static Load Capacity | 2550.0 |
| Dynamic Load Capacity (Lb.) | 4350 |
| Distance Between Base And Center (mm) | 80.5000 |
| Distance Between Base And Center (Decimal Inch) | 3.1690 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 1.000 |
| Flange Thickness (Decimal Inch) | 0.5120 |
| MSC Part # | 57132342 |
| Mfr Part # | PCJTY30 |
| Country of Origin Country of Origin is subject to change | Vietnam |
