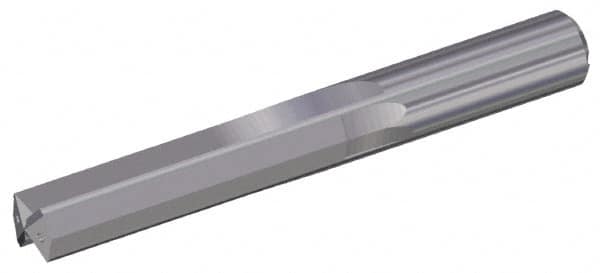

Die Drill Bit: 0.7480″ Dia, 130 °, Solid Carbide Bright Finish, Series B411
Item #: 08000366
Brand: Kennametal
Model #: 1198703
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 19.00 |
| Tool Material | Carbide |
| Coating/Finish | Bright |
| Flute Length (Decimal Inch) | 3.9760 |
| Drill Point Angle | 130 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Coolant Through | Yes |
| Drill Bit Size (Decimal Inch) | 0.7480 |
| Material Grade | KF1 |
| Overall Length (Decimal Inch) | 6.0240 |
| Series | B411 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Coolant-Hole Shape | Round |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.002 to +0.015 mm |
| Primary Workpiece Material | Non-Ferrous Metals; Cast Iron |
| Secondary Workpiece Material | Non-Ferrous Metals; Cast Iron |
| Drill Point Length (mm) | 4.40 |
| Maximum Drilling Depth (Decimal Inch) | 3.0300 |
| Shank Length (Decimal Inch) | 1.9685 |
| Specification Number | DIN 6537L |
