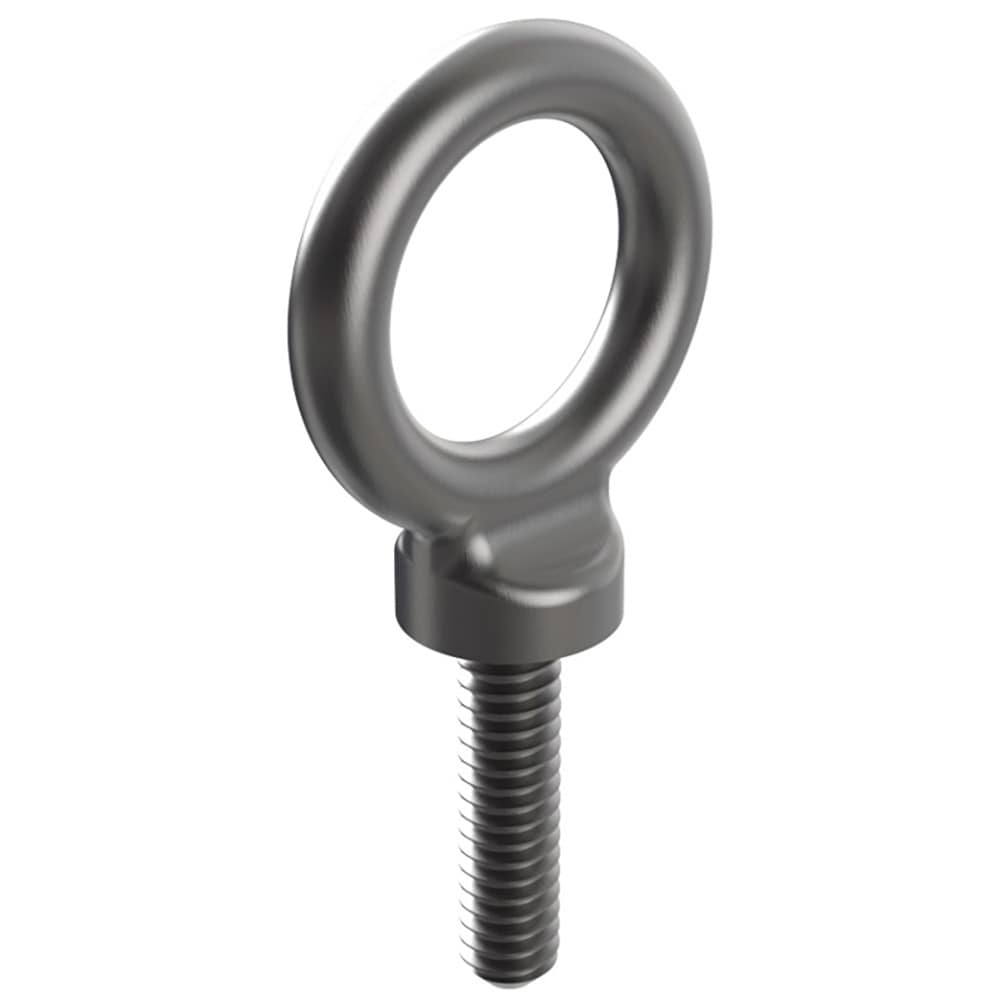

Eye Bolts (Lifting); Eye Bolt Type: Forged; Shoulder Type: With Shoulder; Lifting Capacity (kg): 500.00; Eye Inside Diameter (mm): 25.000
Item #: 05039441
Brand: Jergens
Model #: 18562
Product Specifications
| Eye Bolt Type | Forged |
| Shoulder Type | With Shoulder |
| Lifting Capacity (kg) | 500.00 |
| Eye Inside Diameter (mm) | 25.000 |
| Eye Outside Diameter (mm) | 43.000 |
| Thread Size | M8 x 1.25 |
| Full or Partial Threading | Fully Threaded |
| Thread Length (mm) | 31.70 |
| Overall Length (mm) | 82.6000 |
| Shank Length (mm) | 31.700 |
| Shank Diameter (Inch) | 5/16 |
| Material | Forged Steel |
| Shoulder/Base Diameter (mm) | 17.50 |
| Finish Coating | Mill |
| System Of Measurement | Metric |
| UNSPSC Code | 31161610 |
