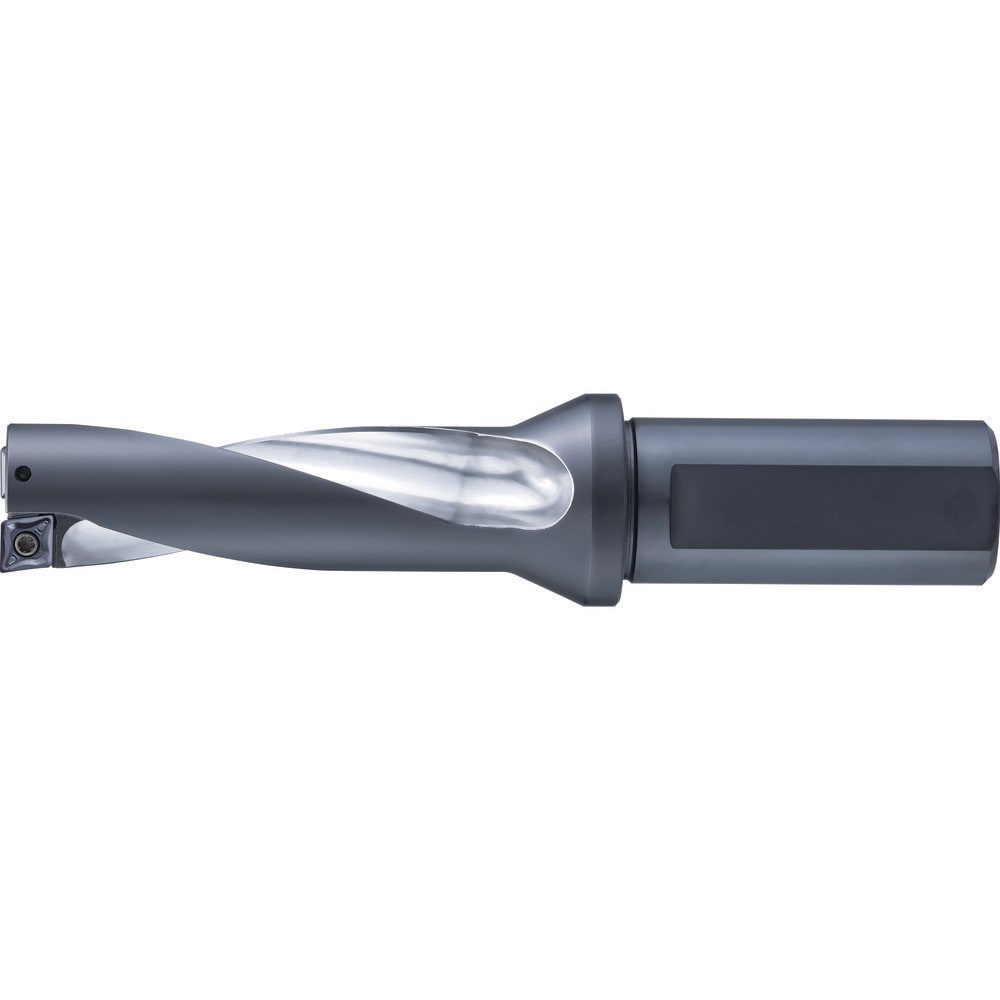

Indexable Insert Drill: PDZ0688FS075A05-3D, 11/16" Max Dia, 2-1/16" Max Depth, 3xD, 3/4" Shank Dia
Item #: 62084041
Brand: OSG
Model #: 52514002
Product Specifications
| Compatible Drill Style | PDZ |
| Maximum Drill Diameter (Inch) | 11/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.6875 |
| Maximum Drill Depth (Inch) | 2-1/16 |
| Maximum Drill Depth (Decimal Inch) | 2.0625 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 050204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.7405 |
| Series | 52514 |
| Flute Length (Decimal Inch) | 2.0625 |
| Body Length | 120.41 |
| Body Length (Decimal Inch) | 2.7715 |
| Shank Length (Decimal Inch) | 1.9690 |
| Tool Application | Drilling; Plunging; Counterboring |
| Tool Performance | High Performance |
| UNSPSC Code | 23291534 |
| Insert Compatibility | ZPNT050204 |
| Collar Diameter (Decimal Inch) | 0.6875 |
| Coolant Through | Yes |
| Compatible Drill Style | PDZ |
| Maximum Drill Diameter (Inch) | 11/16 |
| Maximum Drill Diameter (Decimal Inch) | 0.6875 |
| Maximum Drill Depth (Inch) | 2-1/16 |
| Maximum Drill Depth (Decimal Inch) | 2.0625 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | ZPNT |
| Compatible Insert Size Code | 050204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 4.7405 |
| Series | 52514 |
| Flute Length (Decimal Inch) | 2.0625 |
| Body Length | 120.41 |
| Body Length (Decimal Inch) | 2.7715 |
| Shank Length (Decimal Inch) | 1.9690 |
| Tool Application | Drilling; Plunging; Counterboring |
| Tool Performance | High Performance |
| UNSPSC Code | 23291534 |
| Insert Compatibility | ZPNT050204 |
| Collar Diameter (Decimal Inch) | 0.6875 |
| Coolant Through | Yes |
| MSC Part # | 62084041 |
| Mfr Part # | 52514002 |
| Country of Origin Country of Origin is subject to change | Japan |
