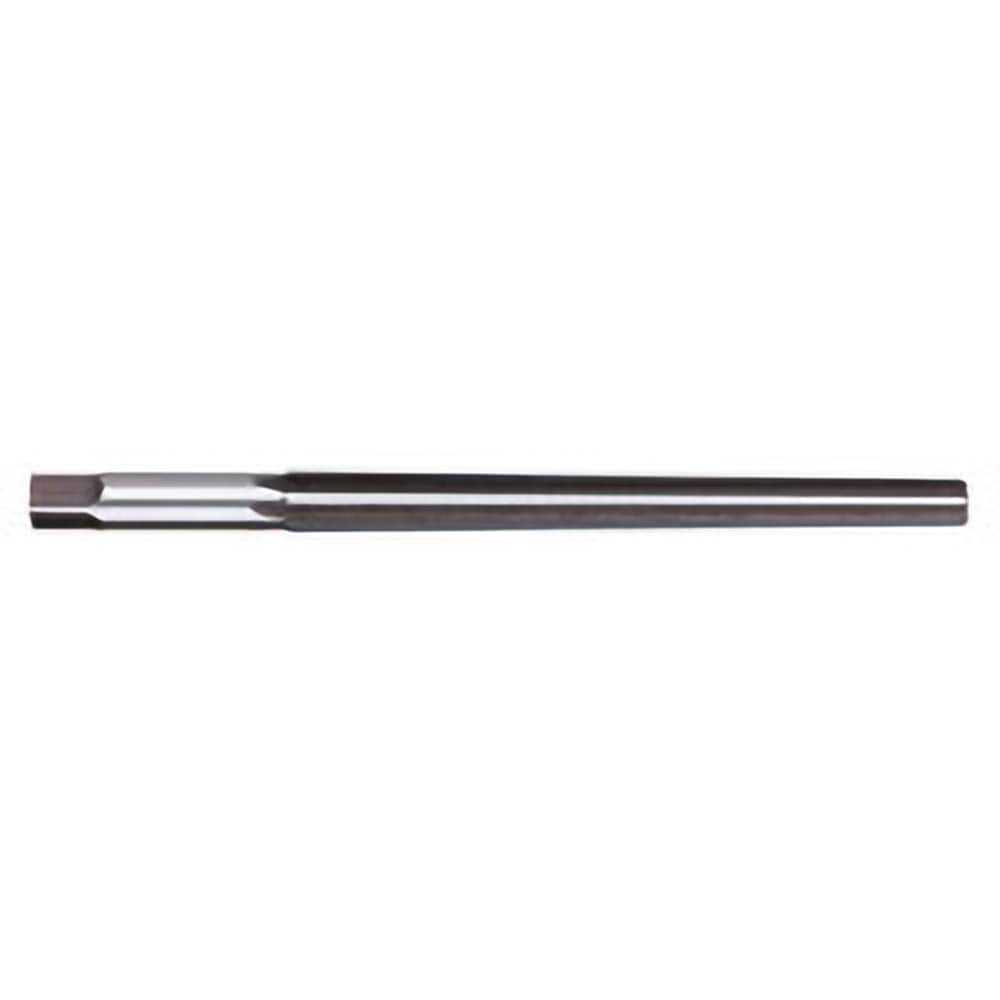

#4/0 Pin 0.0869″ Small End/0.1142″ Large End Straight Flute High Speed Steel Taper Pin Reamer Uncoated, 1-5/16″ Flute Length, 2-5/16″ OAL, 4 Flutes, 1/8″ Diam Straight-Cylindrical Shank, RH Cut
Item #: 07962780
Brand: Titan USA
Model #: TR97528
Product Specifications
| Taper Pin Size | #4/0 |
| Flute Type | Straight |
| Shank Type | Square |
| Tool Material | High Speed Steel |
| Series | 987 |
| Coating/Finish | Bright/Uncoated |
| Small End Diameter (Decimal Inch) | 0.0869 |
| Large End Diameter (Decimal Inch) | 0.1142 |
| Overall Length (Inch) | 2-5/16 |
| Overall Length (Decimal Inch) | 2.3125 |
| Flute Length (Inch) | 1-5/16 |
| Flute Length (Decimal Inch) | 1.3125 |
| Number of Flutes | 4 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Taper Rate | 1:48 |
| Tool Application | Hole Enlarging; Hole Finishing; Hole Shaping |
| Tool Performance | General Purpose |
| Cutting Direction | Right Hand |
