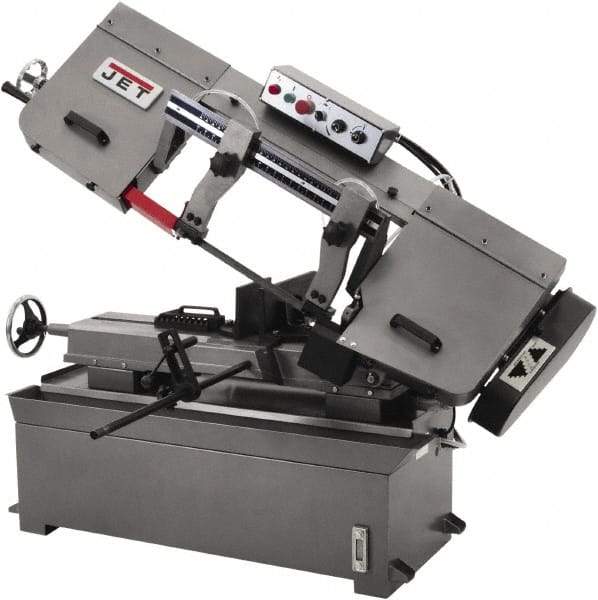

Jet - 10 x 18" Max Capacity, Manual Step Pulley Horizontal Bandsaw - 82, 132, 210 & 330 SFPM Blade Speed, 230 Volts, 45°, 2 hp, 1 Phase
Item #: 07815392
Brand: Jet
Model #: 414473
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 45 |
| Maximum Capacity (Rectangular) (Inch) | 10 x 18 |
| Maximum Capacity (Rounds) (Inch) | 10 |
| Phase | 1 |
| Voltage | 230 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (Inch) | 7-1/2(Round); 10 x 7-1/2(Rectangular) |
| Blade Width (Decimal Inch) | 1.0000 |
| Blade Speeds (SFPM) | 82; 132; 210; 330 |
| Blade Length (Inch) | 130-1/2 |
| Blade Length (Decimal Inch) | 130.0000 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Blade Guide Type | Bearings |
| Horsepower (HP) | 2.00 |
| Base Width (Inch) | 31 |
| Base Depth (Inch) | 70 |
