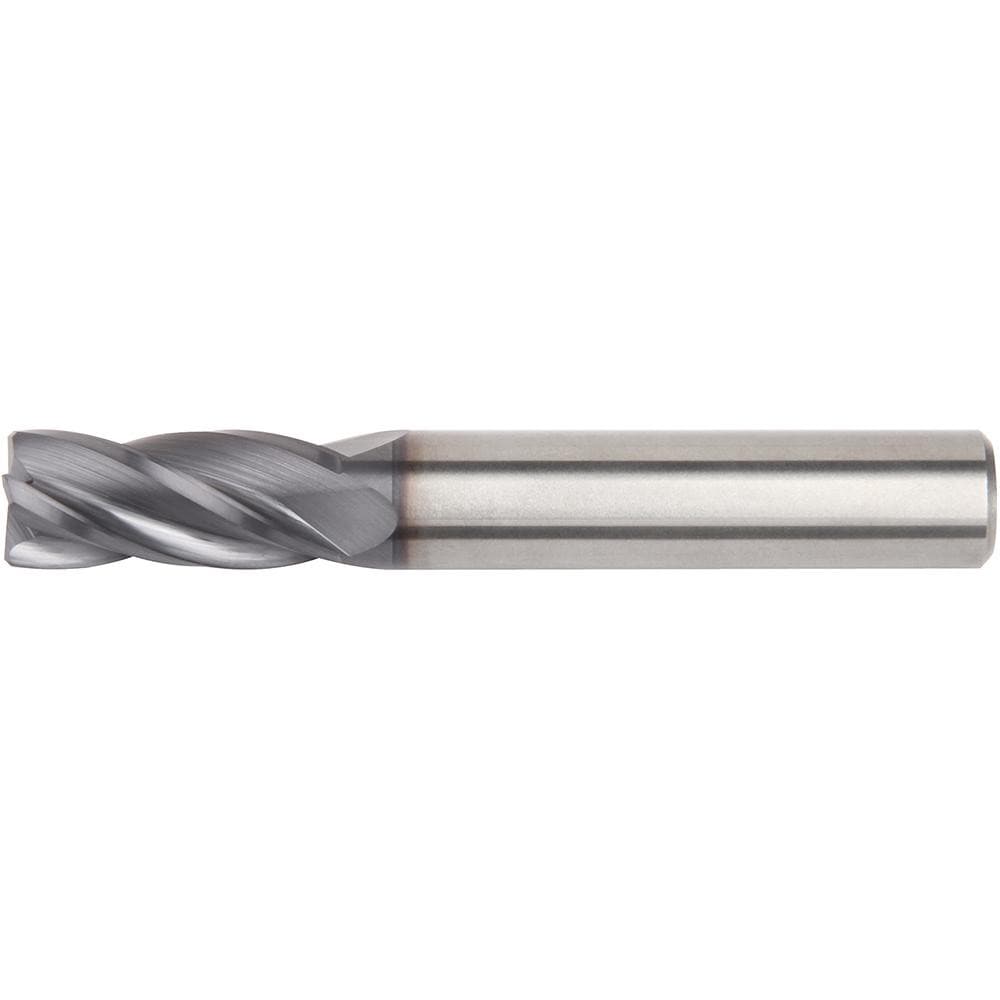

Square End Mill: 16.00 mm Dia, 32.00 mm LOC, 4 Flute, Solid Carbide
Item #: 34044990
Brand: Widia
Model #: 6085540
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.2590 |
| Length of Cut (mm) | 32.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 92.00 |
| Overall Length (Decimal Inch) | 3.6220 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum & Non-Ferrous |
| Secondary Workpiece Material Code | N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Uncoated |
| Length Type | Regular |
| Neck Length (Decimal Inch) | 1.2590 |
| Neck Diameter (Decimal Inch) | 0.6299 |
| Series | 4004 4014 4024 |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
