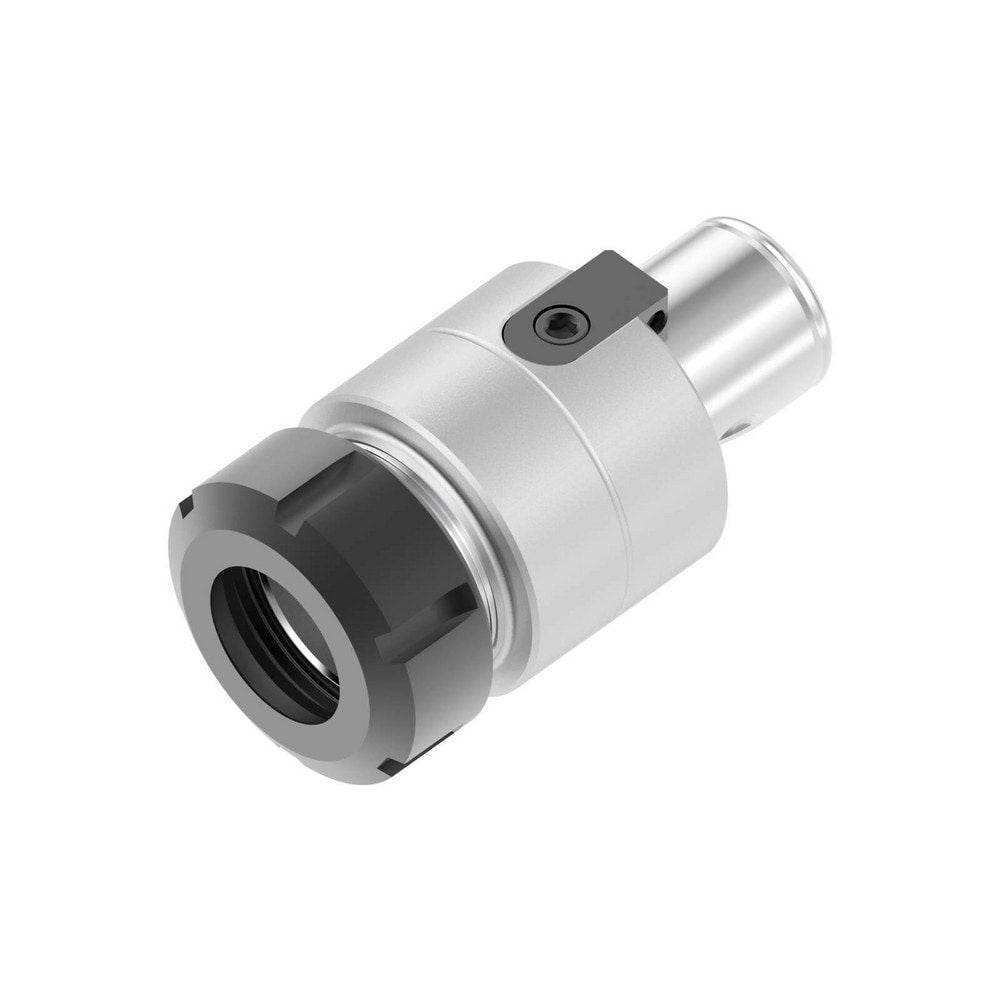

Collet Chuck: ER Collet, Modular Connection Shank
Item #: 87886107
Brand: Seco
Model #: 10229750
Product Specifications
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Modular Connection |
| Modular Connection Size | Graflex 6 |
| Projection (Decimal Inch) | 3.3465 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1181 |
| Maximum Collet Capacity (Decimal Inch) | 1.0236 |
| Overall Length (Decimal Inch) | 4.9213 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.4803 |
| Shank Diameter (Decimal Inch) | 1.4170 |
| Shank Length (Decimal Inch) | 1.5750 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 2.4803 |
| Nose Type | Plain |
| Type | Collet Chuck |
| Manufacturer's Part Number | G6-ER40-085 |
| UNSPSC Code | 27112808 |
| Head Length (Decimal Inch) | 2.3228 |
| Quick Change | No |
| For Use With | ER Collets |
| Country of Origin | France |
