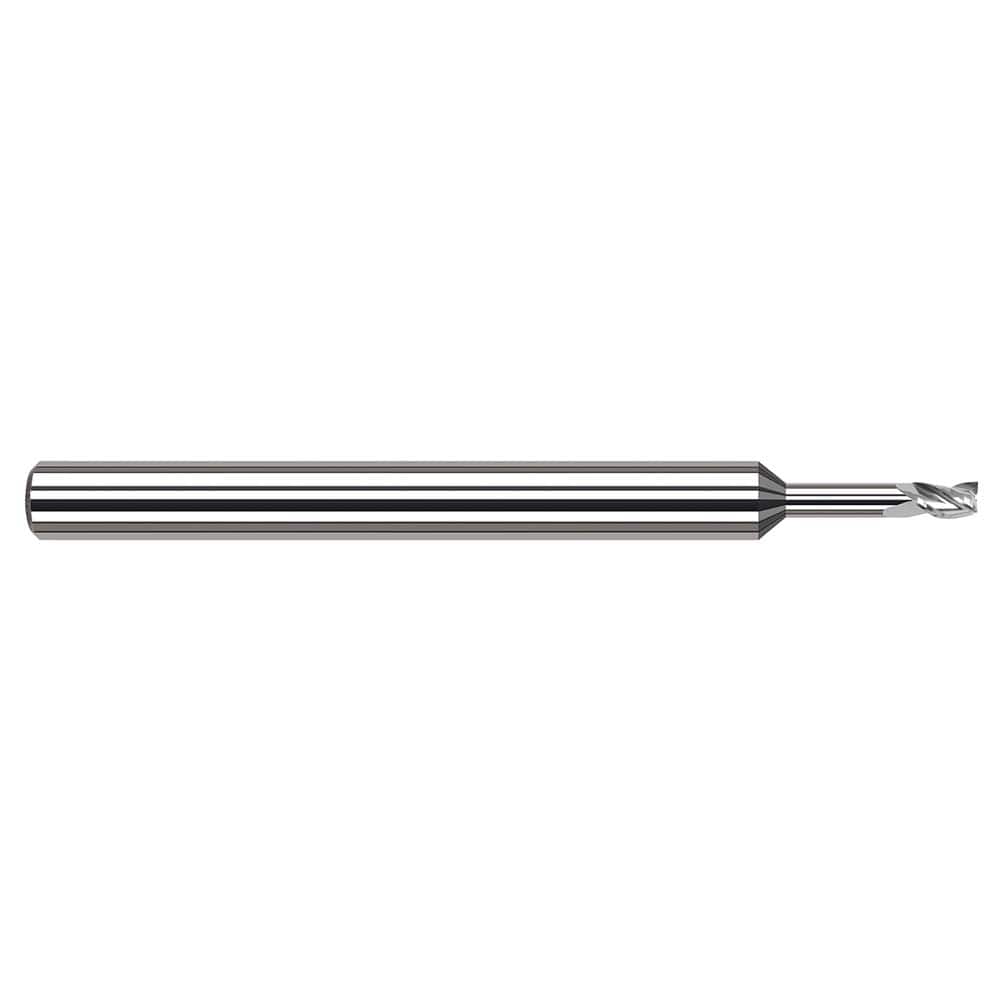

Square End Mill: 1/32'' Dia, 3/64'' LOC, 1/8'' Shank Dia, 2-1/2'' OAL, 3 Flutes, Solid Carbide Single End, Uncoated, Spiral Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 07792617
Brand: Harvey Tool
Model #: 33231
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/64 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 30 |
| Variable Helix | No |
| Extended Reach | Yes |
| Length of Cut (Decimal Inch) | 0.0470 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Length Type | Long |
| Reach Length (Inch) | 5/32 |
| Reach Length (Decimal Inch) | 0.1560 |
