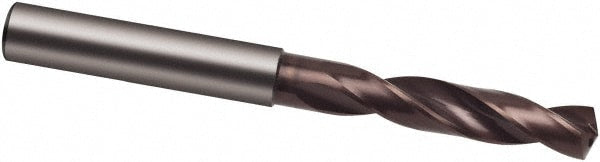

Screw Machine Length Drill Bit: 8.00 mm Dia, 140 deg Point, Solid Carbide
Item #: 58531179
Brand: Guhring
Model #: 9085200080000
Product Specifications
| Drill Bit Size (mm) | 8.00 |
| Drill Bit Size (Decimal Inch) | 0.3150 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy; Steel |
| Point Type | Cone Relief |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | 8520 |
| Web Thinning | Web-Thinned |
| Proprietary Coating/Finish | nano-Si |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.1420 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 38.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Standards | DIN 6537 K |
| Flute Length (mm) | 41.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.50 |
| Specification Designation | DIN |
| Material Grade | K40 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (mm) | 8.00 |
| Drill Bit Size (Decimal Inch) | 0.3150 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy; Steel |
| Point Type | Cone Relief |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | 8520 |
| Web Thinning | Web-Thinned |
| Proprietary Coating/Finish | nano-Si |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.1420 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (Decimal Inch) | 1.4961 |
| Shank Length (mm) | 38.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | m7 |
| Standards | DIN 6537 K |
| Flute Length (mm) | 41.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.3000 to 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.50 |
| Specification Designation | DIN |
| Material Grade | K40 |
| UNSPSC Code | 23241635 |
| MSC Part # | 58531179 |
| Mfr Part # | 9085200080000 |
| Country of Origin Country of Origin is subject to change | Germany |
