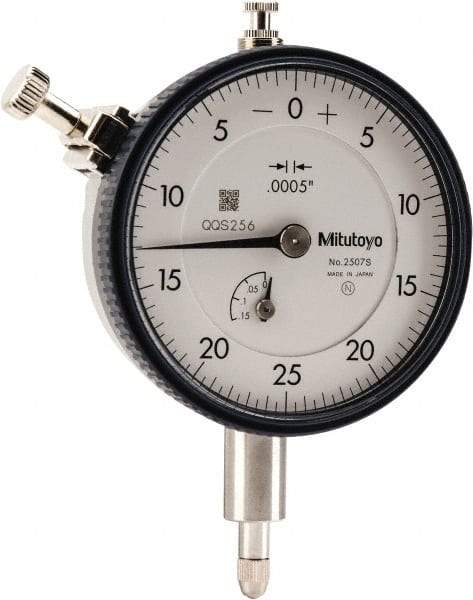

Mitutoyo - 1/8" Range, 0-25-0 Dial Reading, 0.0005" Graduation Dial Drop Indicator - 2-1/4" Dial, 0.05" Range per Revolution, 0.0005" Accuracy, Revolution Counter
Item #: 07718232
Brand: Mitutoyo
Model #: 2507S
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Measurement (Decimal Inch) | 0.1250 |
| Dial Graduation (Decimal Inch) | 0.000500 |
| Dial Reading | 0-25-0 |
| Dial Diameter (Inch) | 2-1/4 |
| Dial Diameter (mm) | 57.15 |
| AGDGpNo | 2 |
| Accuracy (Decimal Inch) | 0.000500 |
| Dial Color | White |
| Measuring Force (N) | 1.80 |
| Range Per Revolution (Decimal Inch) | 0.0500 |
| Revolution Counter | Yes |
| Back Type | Lug |
