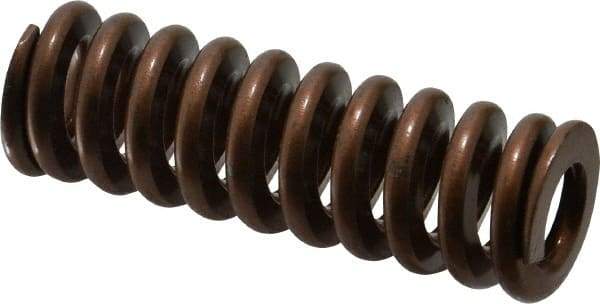

Associated Spring Raymond - 1" Hole Diam, 1/2" Rod Diam, 3" Free Length, Gold Die Spring - 489.6 Lb Max Deflection, 0.9" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 07662745
Brand: Associated Spring Raymond
Model #: 105-512
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1 |
| Rod Diameter (Inch) | 1/2 |
| Free Length (Inch) | 3 |
| Load Type | Heavy-Duty |
| Color | Gold |
| Maximum Deflection Load (Lb.) | 489.60 |
| Maximum Deflection (Decimal Inch) | 0.9000 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
