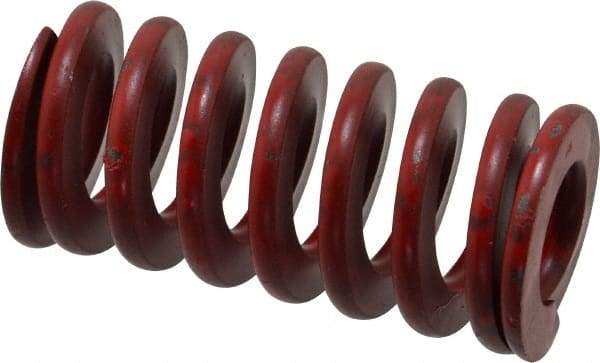

Associated Spring Raymond - 1" Hole Diam, 1/2" Rod Diam, 2" Free Length, Red Die Spring - 296 Lb Max Deflection, 0.74" Max Deflection, Medium Heavy Duty, Chromium Alloy Steel
Item #: 07661754
Brand: Associated Spring Raymond
Model #: 104-508
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1 |
| Rod Diameter (Inch) | 1/2 |
| Free Length (Inch) | 2 |
| Load Type | Medium Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 296.00 |
| Maximum Deflection (Decimal Inch) | 0.7400 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
