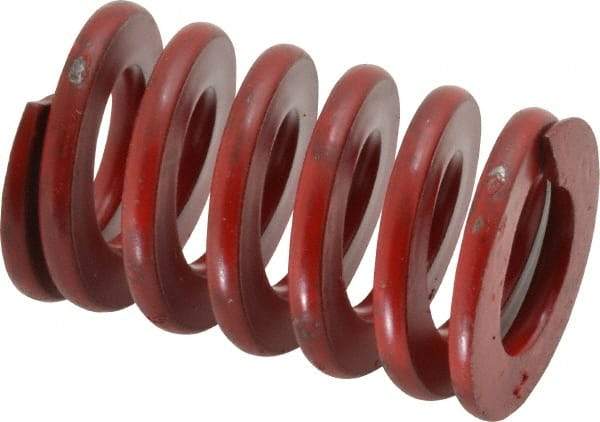

Associated Spring Raymond - 1" Hole Diam, 1/2" Rod Diam, 1-1/2" Free Length, Red Die Spring - 275.3 Lb Max Deflection, 0.56" Max Deflection, Medium Heavy Duty, Chromium Alloy Steel
Item #: 07661739
Brand: Associated Spring Raymond
Model #: 104-506
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1 |
| Rod Diameter (Inch) | 1/2 |
| Free Length (Inch) | 1-1/2 |
| Load Type | Medium Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 275.30 |
| Maximum Deflection (Decimal Inch) | 0.5600 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
