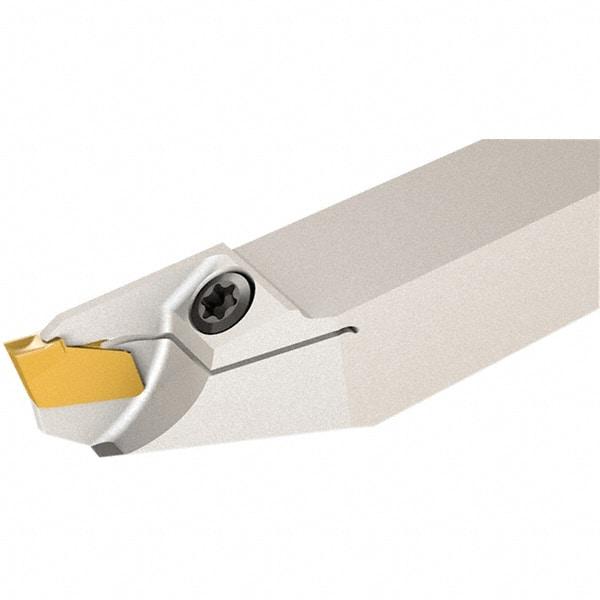

Iscar - External Thread, 0.4724" Max Depth of Cut, 1.2mm Min Groove Width, 140mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 12mm Shank Height x 12mm Shank Width, GF.. Insert Style, SGF Toolholder Style, Series Self-Grip
Item #: 07639172
Brand: Iscar
Model #: 2301505
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Minimum Groove Width (Decimal Inch) | 0.0472 |
| Minimum Groove Width (mm) | 1.20 |
| Maximum Groove Width (Decimal Inch) | 0.0472 |
| Maximum Groove Width (mm) | 1.20 |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 140.00 |
| Series | Self-Grip |
| Toolholder Style | SGF |
| Insert Compatibility | GF.. |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Head Height (mm) | 13.00 |
| Head Height (Decimal Inch) | 0.5118 |
| Complete Insert Compatibility | GFL 1.2J - 10D; GFL 1.2JS - 10D; GFL 1.2JS - 15D; GFN 1.2J; GFN 1.2JS; GFR 1.2JS - 10D; GFR 1.2JS - 15D |
