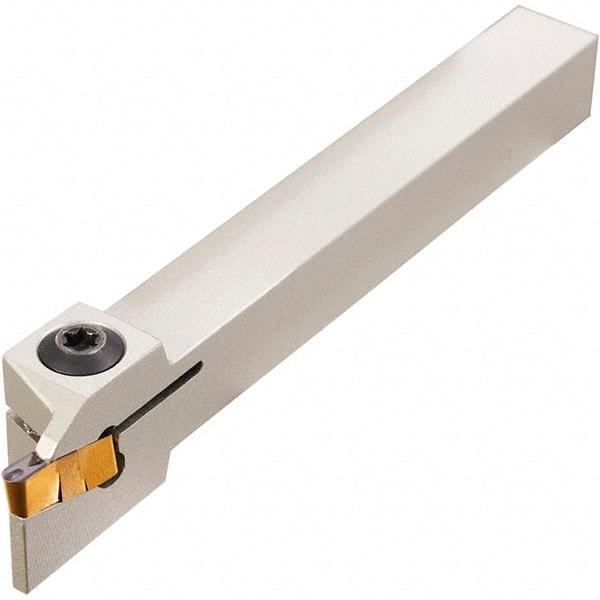

Iscar - GHD, External, Right Hand, 0.65" Max Depth of Cut, 0.283 to 0.394" Groove Width, Indexable Grooving Tool Holder - GI.., GPV 8 Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 07638893
Brand: Iscar
Model #: 2801034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6500 |
| Minimum Groove Width (Decimal Inch) | 0.2830 |
| Maximum Groove Width (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GHD |
| Insert Compatibility | GI..; GPV 8 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Threading; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8700 |
| Complete Insert Compatibility | GIMF 808; GIMY 808; GIMY 1008; GIPY 8.00-4.00; GITM 8.00K-0.40; GPV 8-2.34-3 |
