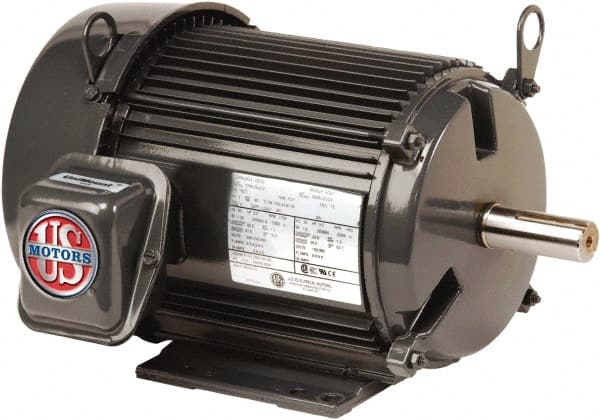

25 hp, TEFC Enclosure, No Thermal Protection, 1770, 1460 RPM, 208-230/460 & 190/380 Volt, 60/50 Hz, Three Phase Premium Efficient Motor Size 284 Frame, C-Face with Base Mount, 1 Speed, Double Shielded Ball Bearings, 65-59/29.3 Full Load Amps, F Class Insu
Item #: 07587439
Brand: US Motors
Model #: U25P2DC
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 25; 25 hp old; 25 h; 25 hp; 25 W |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Horse Power | 25 hp old; 25 h; 25 hp; 25 W |
| Name Plate RPMs | 1770, 1460 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 284 |
| Mount Type | C-Face w/Base |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Application | General Equipment |
| Full Load Amperage | 65-59/29.3 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment |
| Insulation Class | F |
| Frame Material | Aluminum |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
