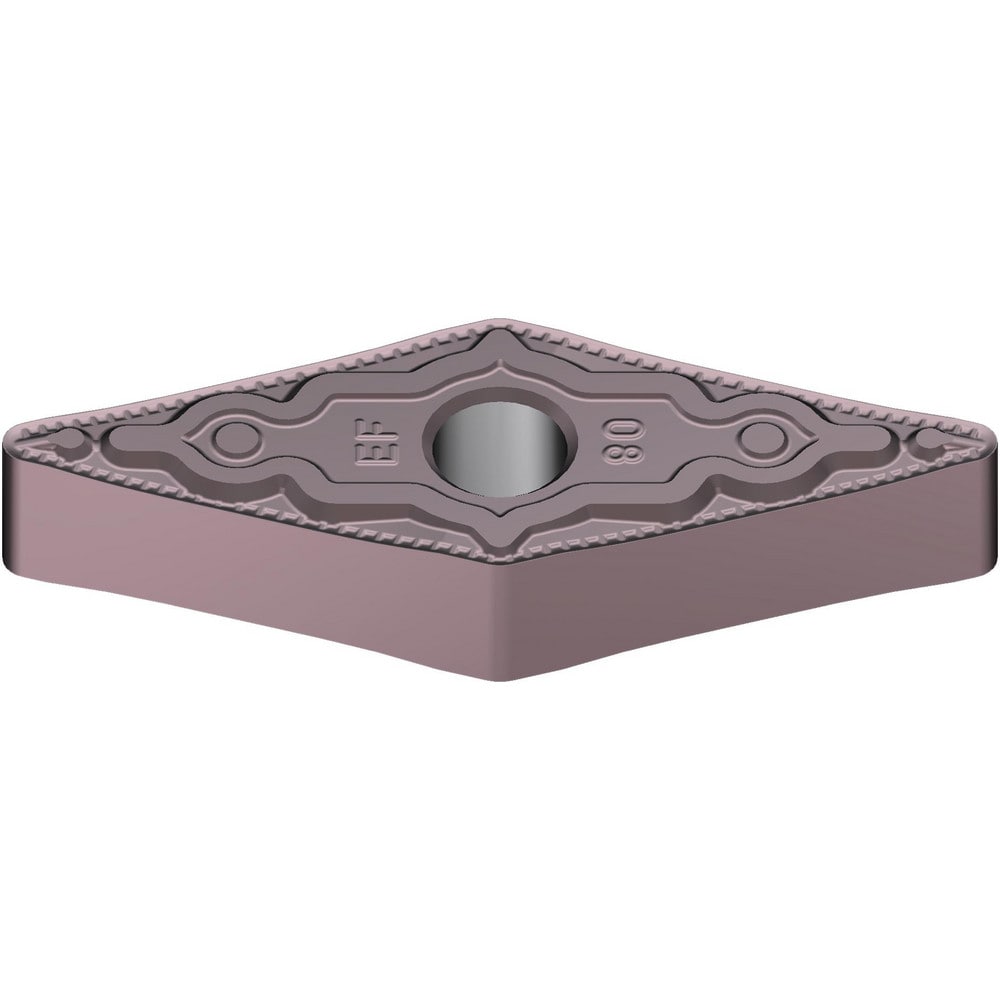

Turning Insert: VNMG330.5EEF AC6040M, Carbide
Item #: 15532997
Brand: Sumitomo
Model #: 196DCHU
Product Specifications
| ANSI Insert Code | VNMG330.5 |
| ISO Insert Code | VNMG160402 |
| Relief Angle | 0 |
| Insert Style | VNMG |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35 |
| Manufacturer Grade | AC6040M |
| Coating/Finish | Absotech |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | AC6000M |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Negative |
| Insert Shape Code | V |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6500 - 0.7000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6535 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | VNMG160402N-EF |
| Manufacturers Catalog Number | VNMG330.5EEF-AC6040M |
| Material Grade | M40; M30 |
| Chip Breaker | EEF |
| ANSI Size Code | 330.5 |
| ISO Size Code | 160402 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 330.5 |
