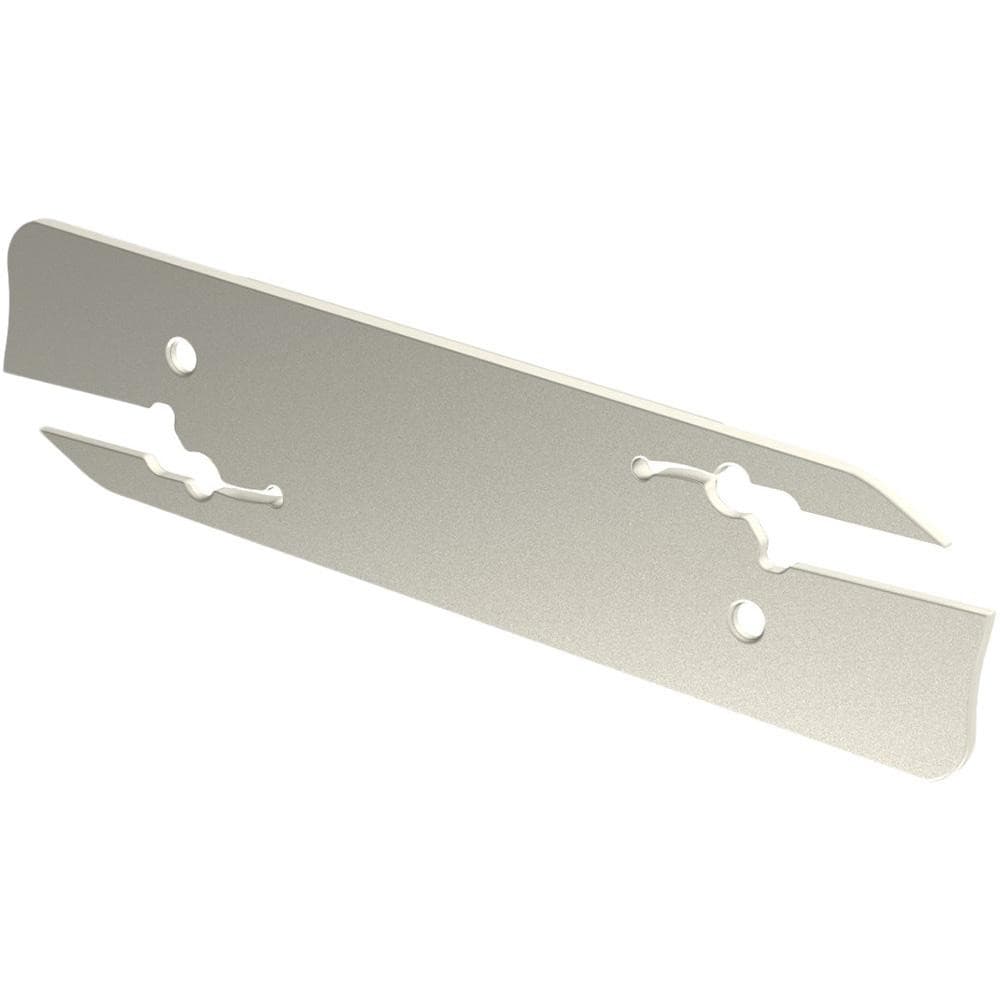

Indexable Grooving Blades; Cutting Direction: Neutral; Minimum Groove Width: 2.00 mm; Minimum Groove Width (Decimal Inch): 0.0787; Minimum Groove Width (mm): 2.00; Blade Style: Blade Holder; Minimum Insert Width (Decimal Inch): 0.0787; Minimum Insert Widt
Item #: 07074412
Brand: Accupro
Model #: 07074412
Product Specifications
| Cutting Direction | Neutral |
| Minimum Groove Width | 2.00 mm |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Blade Style | Blade Holder |
| Minimum Insert Width (Decimal Inch) | 0.0787 |
| Minimum Insert Width (mm) | 2.00 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (Decimal Inch) | 0.0630 |
| Blade Width (mm) | 1.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Workpiece Diameter (mm) | 2.00 |
| Maximum Workpiece Diameter (mm) | 2.00 |
| Maximum Insert Width (mm) | 2.00 |
| Maximum Insert Width (Decimal Inch) | 0.0787 |
| Compatible Insert Style | GO; GD |
| Compatible Insert Size Code | 2 |
| Series | CI |
| Overall Length (mm) | 150.0000 |
| Overall Length (Decimal Inch) | 5.9055 |
| Maximum Groove Width (Decimal Inch) | 0.0787 |
| Maximum Groove Width (mm) | 2.00 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9100 |
| Cutting Height (mm) | 32.00 |
| Cutting Height (Decimal Inch) | 1.2598 |
| Single Or Double End | Double |
| UNSPSC Code | 23241600 |
