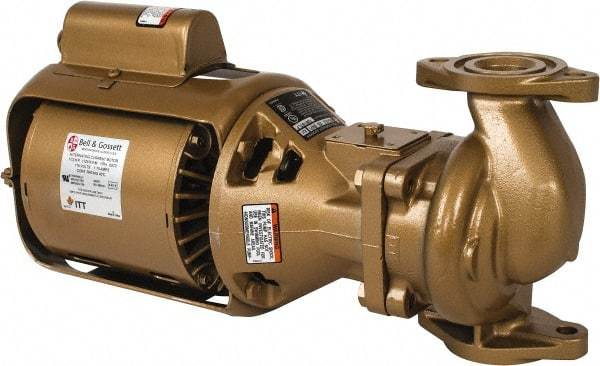

Bell & Gossett - 1/12 hp, 14-7/8" Long, 1 Phase, Bronze Housing, Brass Impeller, Inline Circulator Pump - 115 Volt, 60 Hz, 6-3/8" Flange Width, Bell & Gossett Part No. 106197, 125 Max psi, ODP Motor
Item #: 07499130
Brand: Bell & Gossett
Model #: 106197LF
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | In-Line Oil Lubricated Circulator Pump |
| Horsepower | 1/12 |
| Voltage | 115 |
| Phase | 1 |
| Housing Material | Bronze |
| Impeller Material | Brass |
| Flanges Included | No |
| Frequency Hz | 60 |
| Motor Type | ODP |
| RPM | 1725.000 |
| Maximum Working Pressure (psi) | 125.000 |
| Flange Width (Inch) | 6-3/8 |
| Length (Inch) | 14-7/8 |
| Bell & Gossett Part # | 106197 |
| Teel Part Number | 3P702 |
| Repair Kit | 118681 |
| Replacement Motor | 111034 |
