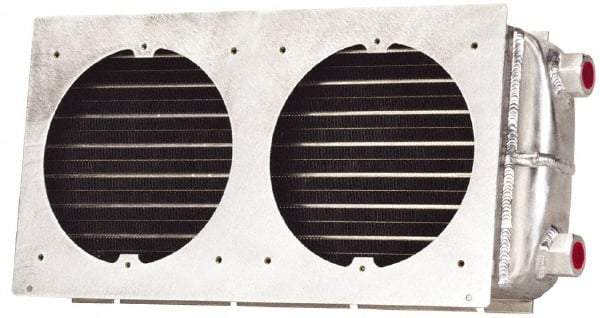

Lytron - 3/8-18 FNPT, 2 Fan Mount, Liquid-To-Air Aluminum Brazed Process Equipment Heat Exchanger - Oil Cooler, Ethylene Glycol/Water Mixture Cooler, 8.4" High x 18" Wide x 3.1" Deep, 5,025 BTU/Hr, 400°F Max
Item #: 07440779
Brand: Lytron
Model #: ES0714G23-F9
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Heat Exchanger Type | Liquid-To-Air |
| Style | Aluminum Brazed |
| Recommended Cooling Fluids | Oils & Ethylene Glycol/Water Mixture |
| Connection Size | 3/8-18 FNPT |
| Number of Fan Mountings | 2 |
| Height (Inch) | 8.4 |
| Width (Decimal Inch) | 18.0000 |
| Depth (Inch) | 3.1000 |
| Maximum Temperature (F) | 400.000 |
| BTU/Hour | 5025 |
| Connection Type | Straight |
| Fluid Circuit Material | Aluminum |
| Fan Type | 76939941 |
| BTU/Hour 2 | 5785 |
