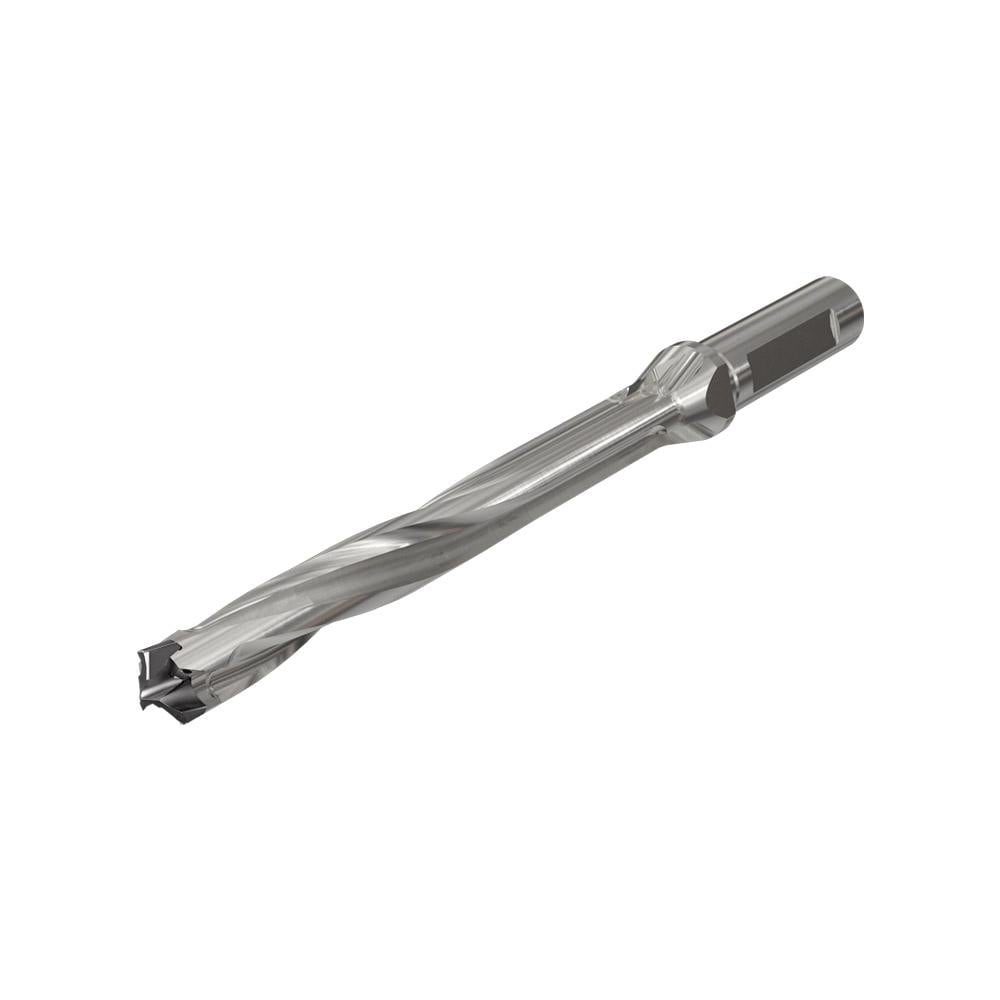

Replaceable-Tip Drills; Minimum Drill Diameter (Decimal Inch): 0.4724; Minimum Drill Diameter (mm): 12.00; Maximum Drill Diameter (mm): 12.49; Maximum Drill Diameter (Decimal Inch): 0.4917; Drill Depth by Diameter Ratio: 8xD; Maximum Drill Depth (mm): 120
Item #: 84447572
Brand: Iscar
Model #: 3392165
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Minimum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 120.92 |
| Maximum Drill Depth (Decimal Inch) | 4.7606 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Seat Size | 12 |
| Shank Diameter (mm) | 16.0000 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 100.00 - 125.00 |
| Compatible Insert Style | H3P 120-IQ |
| Overall Length (mm) | 168.9000 |
| Overall Length (Decimal Inch) | 6.6496 |
| Series | D3N |
| Flute Length (mm) | 98.71 |
| Flute Length (Decimal Inch) | 3.8862 |
| Body Length (Decimal Inch) | 4.7606 |
| Body Length | 120.920 |
| Shank Length (Decimal Inch) | 1.8890 |
| Shank Length (mm) | 47.980 |
| Tool Application | Drilling |
| Standards | ISO 13399 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | Uncoated |
| Number Of Flutes | 3 |
| UNSPSC Code | 23291502 |
| Coating/Finish | Bright (Polished) |
| Country of Origin | Israel |
