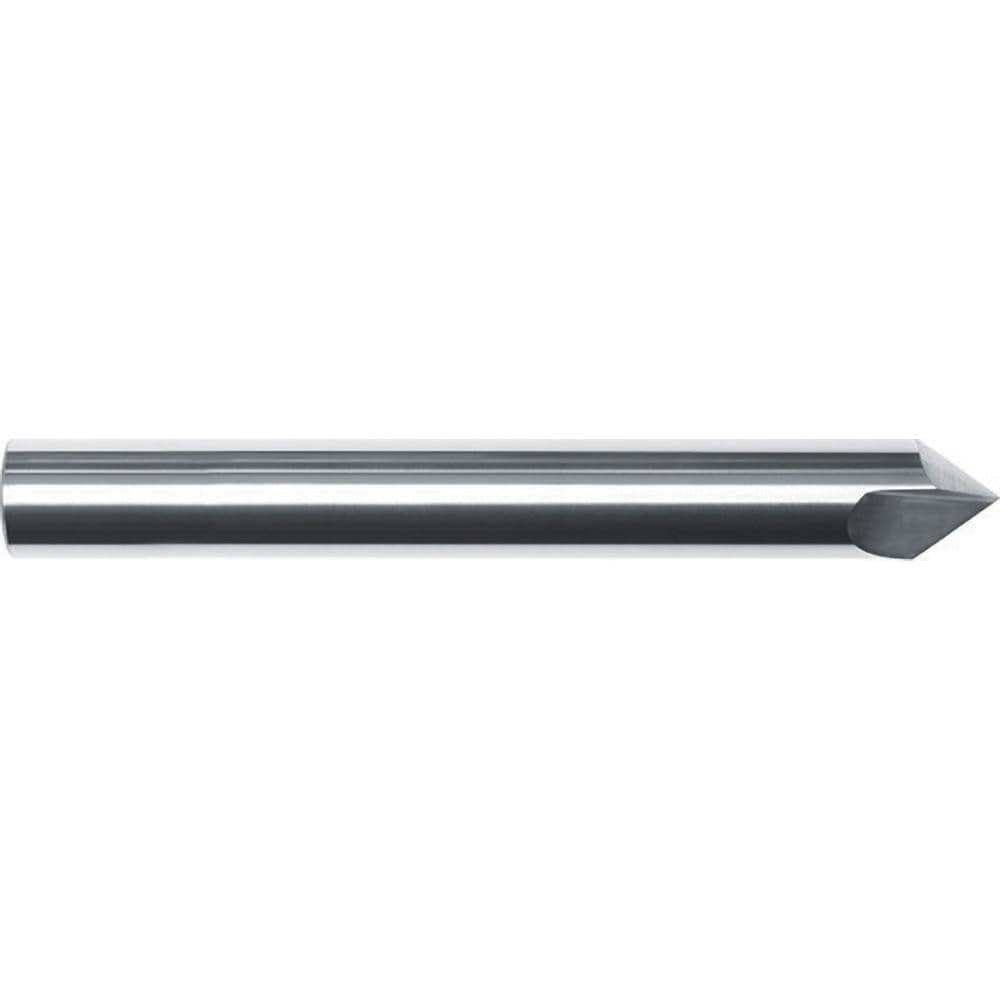

Chamfer Mill: 3/16" Dia, 3/16" Shank Dia, 90.00 deg, 2 Flute, Solid Carbide, Single End
Item #: 75763375
Brand: Internal Tool
Model #: 64-2850-C
Product Specifications
| Cutter Head Diameter (Fractional Inch) | 3/16 |
| Cutter Head Diameter (Decimal Inch) | 0.1875 |
| End Type | Single |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Shank Length (Decimal Inch) | 2.4100 |
| Overall Length (Inch) | 2-1/2 |
| Tool Application | Chamfering; Countersinking |
| Number Of Flutes | 2 |
| Cutting Direction | Right Hand |
| Series | 64 |
| Tapered | No |
| Coolant Through | No |
| Chamfer Mill Material | Solid Carbide |
| Material Application | Bronze; Low-Carbon Steel; Monel; Aluminum; Brass; Aluminum Alloy; Iron; Plastic; Nickel Base Alloy; Medium-Carbon Steel; Steel; Molybdenum; High-Nickel Steel; Magnesium Alloy; Stainless Steel; Cast Iron; Titanium; Magnesium; Copper; Copper Alloy |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0900 |
| Coating/Finish | AlTiN |
| Included Angle | 90.00 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
