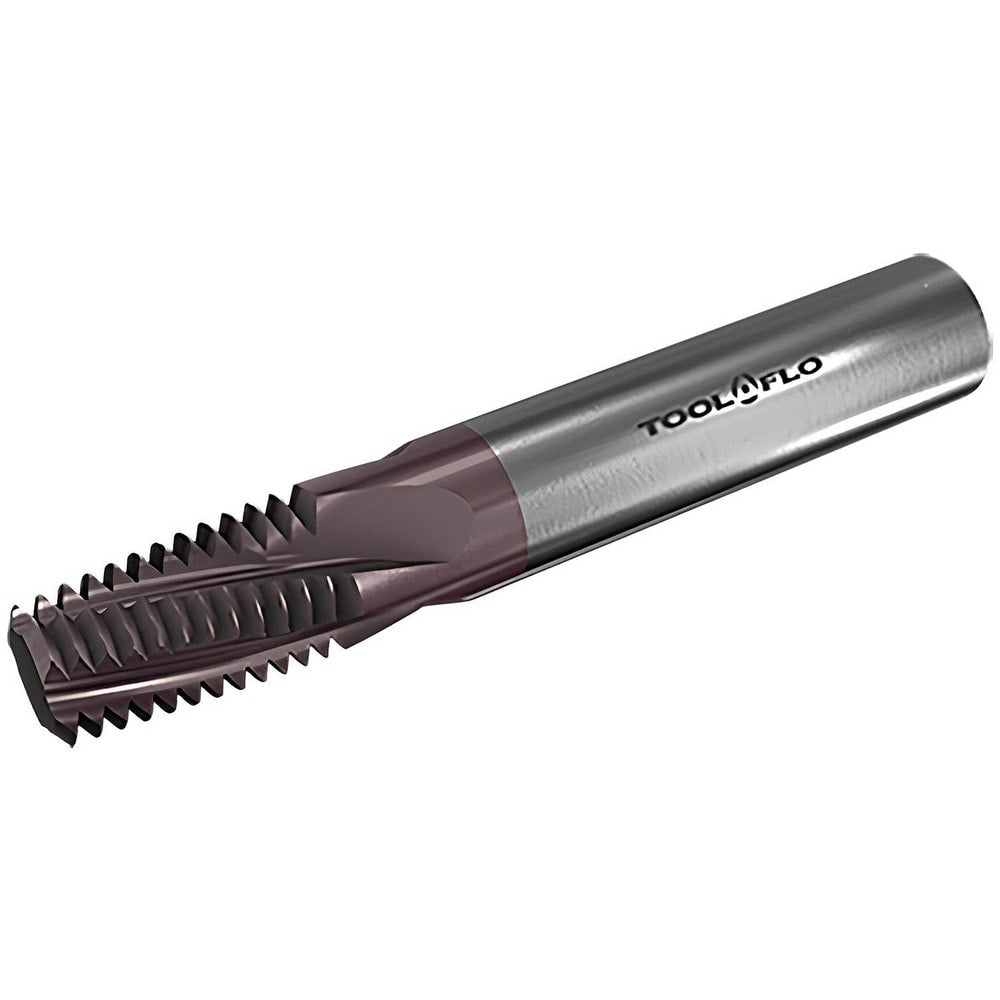

Helical Flute Thread Mill: 1/16-27, Internal/External, 3 Flute, 1/4" Shank Dia, Solid Carbide
Item #: 02348654
Brand: Tool-Flo
Model #: 2468762
Product Specifications
| Material | Carbide |
| Thread Size (Inch) | 1/16-27 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Cutting Diameter (Decimal Inch) | 0.2300 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3900 |
| Overall Length (Decimal Inch) | 2.5000 |
| Thread Standard | NPTF |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Teeth Per Inch | 27 |
| UNSPSC Code | 23242117 |
