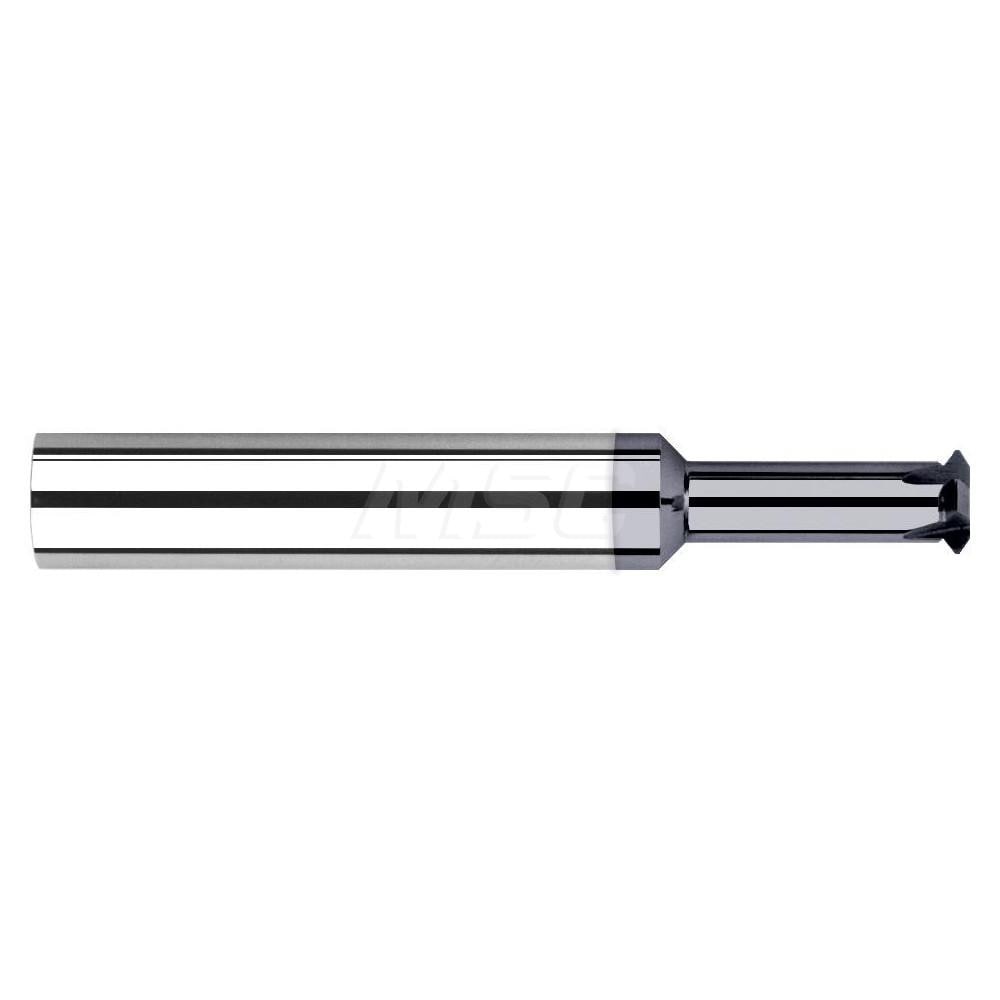

Single Profile Thread Mills; Minimum Pitch (mm): 0.35; Maximum Pitch (mm): 0.35; Material: Solid Carbide; Thread Type: Internal, External
Item #: 05339817
Brand: Harvey Tool
Model #: 724216-C6
Product Specifications
| Minimum Pitch (mm) | 0.35 |
| Maximum Pitch (mm) | 0.35 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | M1.6x0.35 |
| Thread Depth (mm) | 4.90 |
| Shank Diameter (mm) | 3.0000 |
| Neck Diameter (mm) | 0.742 |
| Cutting Diameter (mm) | 1.16 |
| Minimum Nominal Diameter (mm) | 1.6 |
| Overall Length (mm) | 38.0000 |
| Neck Length (mm) | 4.90 |
| Series | Thread Milling Cutters - Single Form - Metric - For Hardened Steels |
| Thread Standard | Metric 60 Degree |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN Nano |
| UNSPSC Code | 23242117 |
