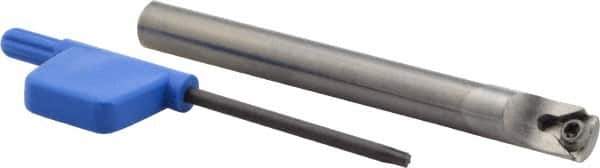

Iscar - 9.5mm Min Bore Diam, 79mm OAL, 8mm Shank Diam, MG STFP-X Indexable Boring Bar - TPGX 73.. Insert
Item #: 07077183
Brand: Iscar
Model #: 3602009
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MG STFP-X |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 9.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.3740 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | TPGX 73.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Negative |
| Center to Cutting Edge (mm) | 4.90 |
| Center to Cutting Edge (Decimal Inch) | 0.1929 |
| Rake Angle | -15 |
| Complete Insert Compatibility | TPGX 730; TPGX 730-L; TPGX 730T; TPGX 731; TPGX 731-L; TPGX 731T |
| Toolholder Material | Carbide |
