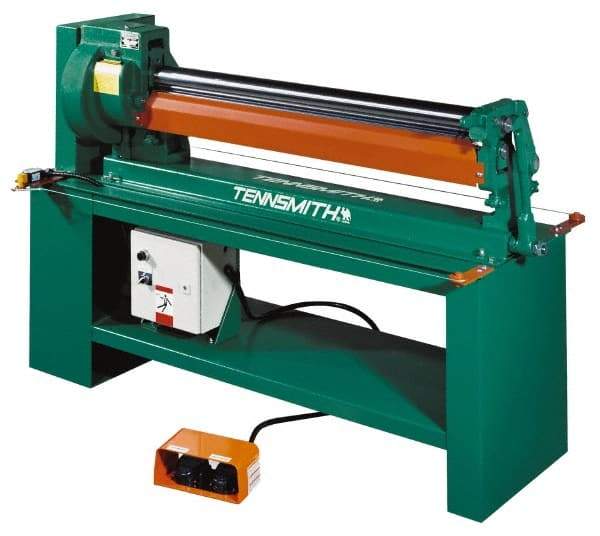

Tennsmith - 20 Gauge Max Stainless Steel Capacity, 49 Inch Max Forming Width, Floor Machine, Electric Slip Roll - 3/4 hp, 77 Inch Overall Width, x 50 Inch Overall Height, 3 Inch Slip Roll Diameter, 3/8, 1/2, 5/8 Inch Wire Groove Width, 230/460 Voltage
Item #: 07031610
Brand: Tennsmith
Model #: SR48P
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Machine Type | Floor |
| Power Type | Electric |
| Maximum Forming Width (mm) | 1244.60 |
| Maximum Forming Width (Inch) | 49 |
| Maximum Mild Steel Capacity (mm) | 1.60 |
| Maximum Mild Steel Capacity (Gauge) | 16 |
| Maximum Stainless Steel Capacity (Gauge) | 20 |
| Slip Roll Diameter (mm) | 76.20 |
| Slip Roll Diameter (Inch) | 3 |
| Minimum Forming Radius (mm) | 38.10 |
| Minimum Forming Radius (Inch) | 1-1/2 |
| Number of Wire Grooves | 3 |
| Wire Groove Width (mm) | 9.50; 12.70; 15.80 |
| Wire Groove Width (Inch) | 3/8; 1/2; 5/8 |
| Phase | 3 |
| Voltage | 230/460 |
| Overall Width (mm) | 1955.80 |
| Overall Width (Inch) | 77 |
| Overall Height (mm) | 1270.00 |
| Overall Height (Inch) | 50 |
