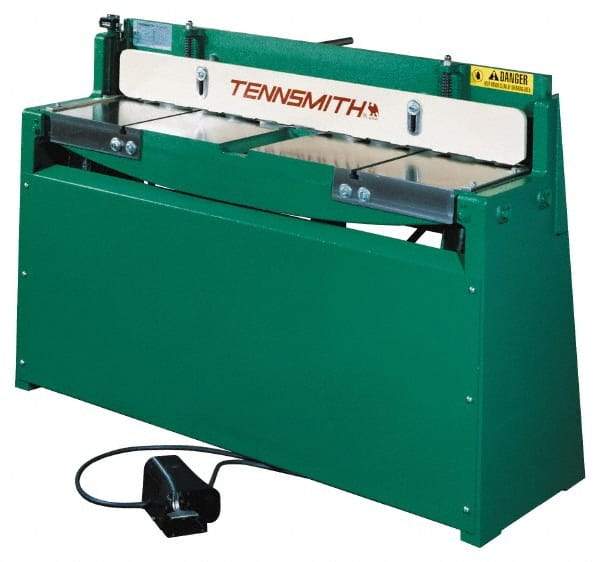

Tennsmith - 37 Inch Long Blade, Pneumatic Power Floor Shear - 46-1/2 Inch Wide x 27 Inch Deep x 42 Inch High, 0.0394 Inch Stainless Steel Capacity, 0.0630 Inch Mild Steel Capacity, 30 Inch Back Gauge Range
Item #: 07031586
Brand: Tennsmith
Model #: MODEL 36A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Blade Length (Inch) | 37 |
| Maximum Mild Steel Capacity (Decimal Inch) | 0.0630 |
| Maximum Mild Steel Capacity (Gauge) | 16 |
| Maximum Stainless Steel Capacity (Decimal Inch) | 0.0394 |
| Maximum Stainless Steel Capacity (Gauge) | 20 |
| Front Gage Range (Inch) | 37 |
| Back Gage Range (Inch) | 30 |
| Speed (SPM) | 40.00 |
| Air Consumption (CFM) | 3.20 |
| Air Consumption (psi) | 75.00 |
| Air Connector Size (Inch) | 1/4 |
| Overall Width (mm) | 1181.00 |
| Overall Width (Inch) | 46-1/2 |
| Overall Depth (mm) | 609.60 |
| Overall Depth (Inch) | 27 |
| Overall Height (mm) | 1066.80 |
| Overall Height (Inch) | 42 |
