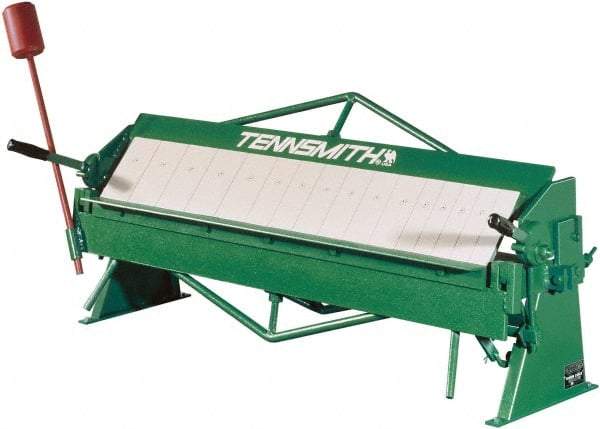

Tennsmith - 48-1/4 Inch Bending Length, Bench Machine Box and Pan Brake - 61 Inch Wide, 22 Inch Deep, 31 Inch High
Item #: 07031529
Brand: Tennsmith
Model #: HBU48-16
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Machine Type | Bench |
| Bending Length (mm) | 1225.55 |
| Bending Length (Inch) | 48-1/4 |
| Maximum Mild Steel Capacity (mm) | 1.60 |
| Maximum Mild Steel Capacity (Gauge) | 16 |
| Maximum Depth of Box (mm) | 101.60 |
| Maximum Depth of Box (Inch) | 4 |
| Press Brake Style | Box & Pan Brake |
| Finger Width (mm) | 51.00; 76.00; 101.00 |
| Finger Width (Inch) | 2; 3; 4 |
| Maximum Beam Lift (mm) | 31.75 |
| Maximum Beam Lift (Inch) | 1-1/4 |
| Overall Width (Inch) | 61 |
| Overall Depth (Inch) | 22 |
| Overall Height (Inch) | 31 |
