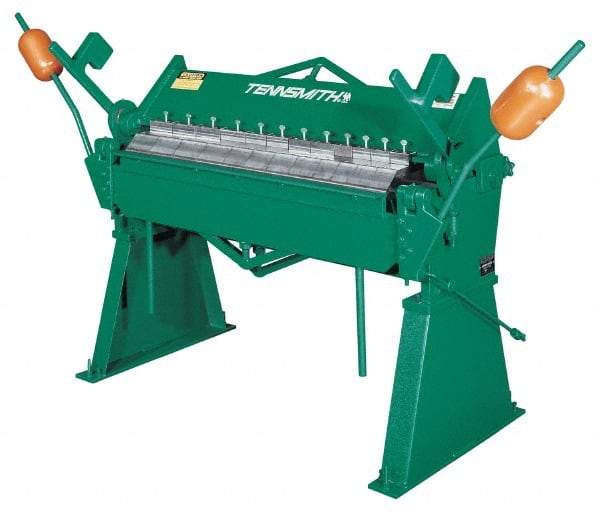

Tennsmith - 120 Inch Bending Length, Floor Machine Box and Pan Brake - 161 Inch Wide, 53 Inch Deep, 60 Inch High
Item #: 07031503
Brand: Tennsmith
Model #: F6-120-14
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Machine Type | Floor |
| Bending Length (mm) | 3048.00 |
| Bending Length (Inch) | 120 |
| Maximum Mild Steel Capacity (mm) | 2.00 |
| Maximum Mild Steel Capacity (Gauge) | 14 |
| Maximum Stainless Steel Capacity (mm) | 1.00 |
| Maximum Stainless Steel Capacity (Gauge) | 20 |
| Maximum Depth of Box (mm) | 152.40 |
| Maximum Depth of Box (Inch) | 6 |
| Press Brake Style | Box & Pan Brake |
| Finger Width (mm) | 10 at 76.2; 10 at 101.6; 10 at 127 |
| Finger Width (Inch) | 3"; 4"; 5" |
| Maximum Beam Lift (mm) | 57.15 |
| Maximum Beam Lift (Inch) | 2-1/4 |
| Overall Width (mm) | 4089.40 |
| Overall Width (Inch) | 161 |
| Overall Depth (mm) | 1346.20 |
| Overall Depth (Inch) | 53 |
| Overall Height (mm) | 1524.00 |
| Overall Height (Inch) | 60 |
