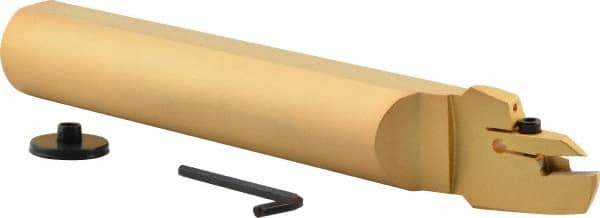

Iscar - 3.93" Min Bore Diam, 14" OAL, 2" Shank Diam, GHIU Indexable Boring Bar - 3.15" Max Bore Depth, GDMA 840, GI.A 8.. Insert
Item #: 07009293
Brand: Iscar
Model #: 2801223
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHIU |
| Series | Cut Grip |
| Minimum Bore Diameter (Decimal Inch) | 3.9300 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 3.1500 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | GDMA 840; GI.A 8.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving |
| Center to Cutting Edge (Decimal Inch) | 1.0200 |
| Complete Insert Compatibility | GDMA 840; GIDA 80-40; GIDA 80-40-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIPA 8.00-4.00 |
