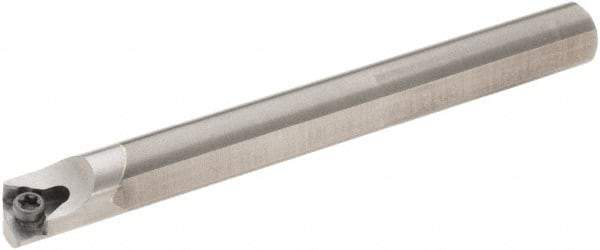

Iscar - 6.6mm Min Bore Diam, 59mm OAL, 6mm Shank Diam, MG-SWUB Indexable Boring Bar - 42mm Max Bore Depth, WB.T 52.. Insert, Screw Holding Method
Item #: 07008873
Brand: Iscar
Model #: 2801122
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MG-SWUB |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 6.60 |
| Minimum Bore Diameter (Decimal Inch) | 0.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 42.00 |
| Maximum Bore Depth (Decimal Inch) | 1.6535 |
| Overall Length (mm) | 59.00 |
| Overall Length (Decimal Inch) | 2.3228 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Insert Compatibility | WB.T 52.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 3.30 |
| Center to Cutting Edge (Decimal Inch) | 0.1299 |
| Insert Thickness (Decimal Inch) | 0.0626 |
| Complete Insert Compatibility | WBGT 520L; WBMT 52.004L; WBMT 520L |
| Toolholder Material | Carbide |
