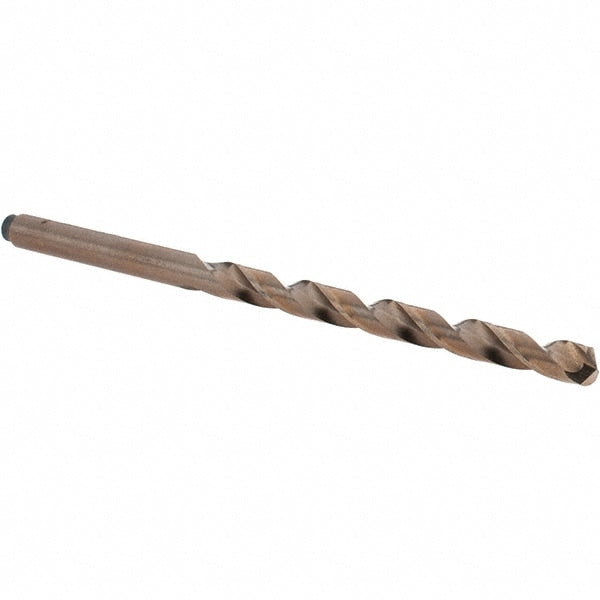

Jobber Drill: #15, 135 deg Point, Cobalt
Item #: 64675465
Brand: Made in USA
Model #: 08440
Product Specifications
| Drill Bit Size (Wire) | #15 |
| Drill Bit Size (Decimal Inch) | 0.1800 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | High-Temp Alloy; Composites; Stainless Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-3/16 |
| Primary Workpiece Material Code | S; M |
| Shank Diameter (Decimal Inch) | 0.1800 |
| Overall Length (mm) | 85.73 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Spiral Type | Regular |
| Flute Length (mm) | 55.56 |
| Flute Length (Decimal Inch) | 2.1875 |
| Series | 240-D |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 2.1875 |
| Maximum Drilling Depth (Inch) | 2-3/16 |
| Shank Length (Decimal Inch) | 1.1875 |
| Shank Length (Inch) | 1-3/16 |
| Number of Flats | 0 |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Wire) | #15 |
| Drill Bit Size (Decimal Inch) | 0.1800 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | High-Temp Alloy; Composites; Stainless Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-3/16 |
| Primary Workpiece Material Code | S; M |
| Shank Diameter (Decimal Inch) | 0.1800 |
| Overall Length (mm) | 85.73 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Spiral Type | Regular |
| Flute Length (mm) | 55.56 |
| Flute Length (Decimal Inch) | 2.1875 |
| Series | 240-D |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 2.1875 |
| Maximum Drilling Depth (Inch) | 2-3/16 |
| Shank Length (Decimal Inch) | 1.1875 |
| Shank Length (Inch) | 1-3/16 |
| Number of Flats | 0 |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| UNSPSC Code | 23241634 |
| MSC Part # | 64675465 |
| Mfr Part # | 08440 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
