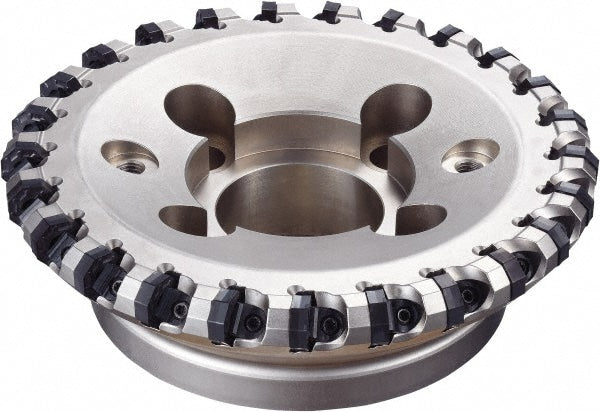

210.2mm Cut Diam, 1-7/8" Arbor Hole Diam, 63mm Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704563
Brand: OSG
Model #: 7802095
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 8.2756 |
| Maximum Cutting Diameter (mm) | 210.20 |
| Maximum Depth of Cut (mm) | 63.00 |
| Arbor Hole Diameter (mm) | 47.63 |
| Arbor Hole Diameter (Inch) | 1-7/8 |
| Compatible Insert Size Code | XAHT06? |
| Cutter Style | PAO |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Series | 78120 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Keyway Width (mm) | 25.40 |
| Hub Diameter (mm) | 150.00 |
| Keyway Depth (mm) | 14.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 25 |
| Number Of Flutes | 25 |
| Maximum Cutting Diameter (Decimal Inch) | 8.2756 |
| Maximum Cutting Diameter (mm) | 210.20 |
| Maximum Depth of Cut (mm) | 63.00 |
| Arbor Hole Diameter (mm) | 47.63 |
| Arbor Hole Diameter (Inch) | 1-7/8 |
| Compatible Insert Size Code | XAHT06? |
| Cutter Style | PAO |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Series | 78120 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Keyway Width (mm) | 25.40 |
| Hub Diameter (mm) | 150.00 |
| Keyway Depth (mm) | 14.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 25 |
| Number Of Flutes | 25 |
| MSC Part # | 55704563 |
| Mfr Part # | 7802095 |
| Country of Origin Country of Origin is subject to change | Japan |
