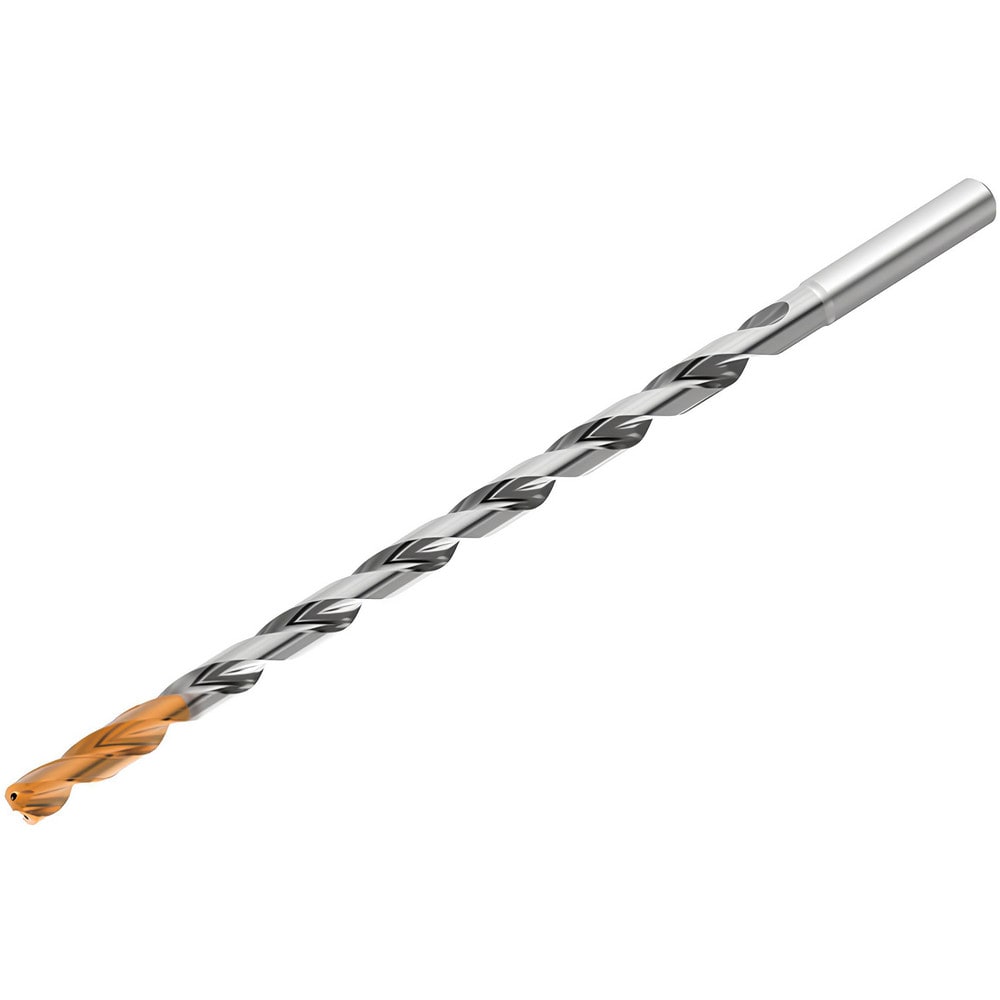

Extra Length Drill Bit: 0.1969", 135 °, Solid Carbide
Item #: 67143735
Brand: Kennametal
Model #: 7081742
Product Specifications
| Drill Bit Size (mm) | 5.00 |
| Overall Length (mm) | 149.0000 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiAlN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Flute Length (mm) | 112.00 |
| Point Type | Chisel Point |
| Series | HPR |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Drill Point Length (mm) | 1.67 |
| Shank Diameter (mm) | 5.0000 |
| Shank Length (mm) | 34.000 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (mm) | 100.00 |
| UNSPSC Code | 23241637 |
| Drill Bit Size (mm) | 5.00 |
| Overall Length (mm) | 149.0000 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN; TiAlN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Drill Point Angle | 135 |
| Flute Length (mm) | 112.00 |
| Point Type | Chisel Point |
| Series | HPR |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Drill Point Length (mm) | 1.67 |
| Shank Diameter (mm) | 5.0000 |
| Shank Length (mm) | 34.000 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (mm) | 100.00 |
| UNSPSC Code | 23241637 |
| MSC Part # | 67143735 |
| Mfr Part # | 7081742 |
| Country of Origin Country of Origin is subject to change | Germany |
