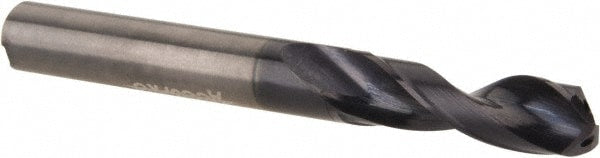

Screw Machine Length Drill Bit: Size #31, 140 deg Point, Solid Carbide
Item #: 61534392
Brand: Accupro
Model #: 61534392
Product Specifications
| Drill Bit Size (Wire) | #31 |
| Drill Bit Size (Decimal Inch) | 0.1200 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 59.99 |
| Overall Length (Decimal Inch) | 2.3620 |
| Shank Diameter (mm) | 3.00 |
| Series | ASSC140-AT-CL |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | AlTiN |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 0.4070 |
| Flute Length (mm) | 10.34 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Specification Designation | ISO |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Wire) | #31 |
| Drill Bit Size (Decimal Inch) | 0.1200 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 59.99 |
| Overall Length (Decimal Inch) | 2.3620 |
| Shank Diameter (mm) | 3.00 |
| Series | ASSC140-AT-CL |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | AlTiN |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 0.4070 |
| Flute Length (mm) | 10.34 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Specification Designation | ISO |
| UNSPSC Code | 23241635 |
| MSC Part # | 61534392 |
| Mfr Part # | 61534392 |
| Big Book Page # | 139 |
| Country of Origin Country of Origin is subject to change | Taiwan |
