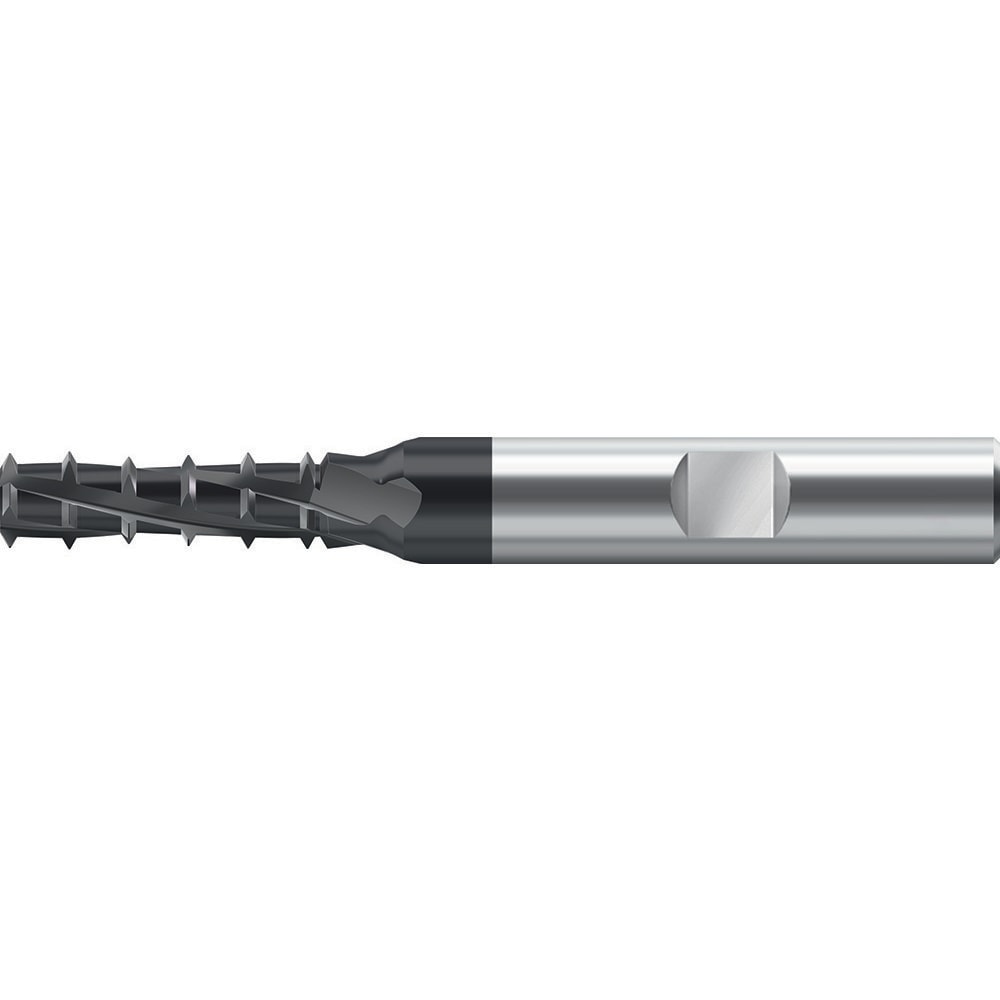

Helical Flute Thread Mill: 5/8-11, Internal, 4 Flute, 16.0000 mm Shank Dia, Solid Carbide
Item #: 96300884
Brand: Walter-Prototyp
Model #: 8117617
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 5/8-11 |
| Thread Type | Internal |
| Shank Diameter (mm) | 16.0000 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Cutting Diameter (mm) | 12.70 |
| Shank Type | Weldon Flat |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6364 |
| Length of Cut (mm) | 41.5600 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.000 |
| Overall Length (mm) | 108.0000 |
| Overall Length (Decimal Inch) | 4.2520 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Series | TC620-UNC-W5E |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 11 |
| UNSPSC Code | 23242117 |
| Country of Origin | Germany |
