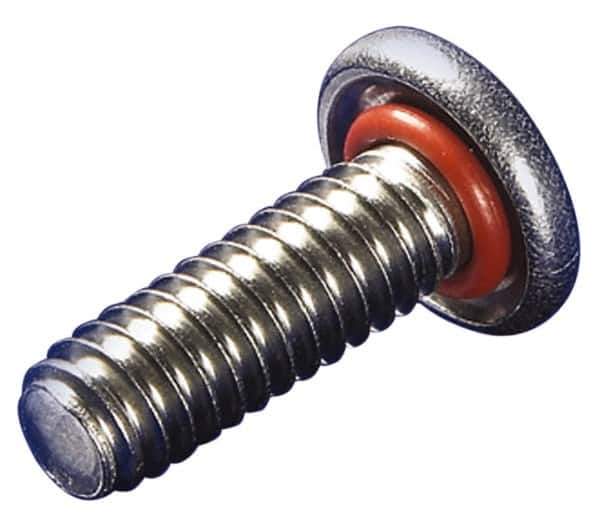

APM HEXSEAL - #6-32 UNC, 3/8" OAL Phillips Drive Machine Screw - Flat Head, Grade 18-8 Stainless Steel, Uncoated, Bonded Sealing
Item #: 06766497
Brand: APM HEXSEAL
Model #: SFR6-32X3/8
Exact Tooling IR#: 04
Features and Benefits
Flat head types have flat surfaces that taper toward the screw body to allow for countersinking. The flat head lies flush against the workpiece.
Phillips drive types have a cross-shaped slot and are used with Phillips drivers. To prevent damage to the fastener head and fastened surface, the drive design forces the driver to cam out when the fastener is sufficiently tightened.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size (Inch) | #6-32 |
| Head Type | Flat |
| Drive Type | Phillips |
| Length (Inch) | 3/8 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Finish/Coating | Uncoated |
| Washer Type | Bonded Sealing |
| Length Measurement Type | Overall Length |
| Phillips Drive Size | #1 |
| Thread Standard | UNC |
