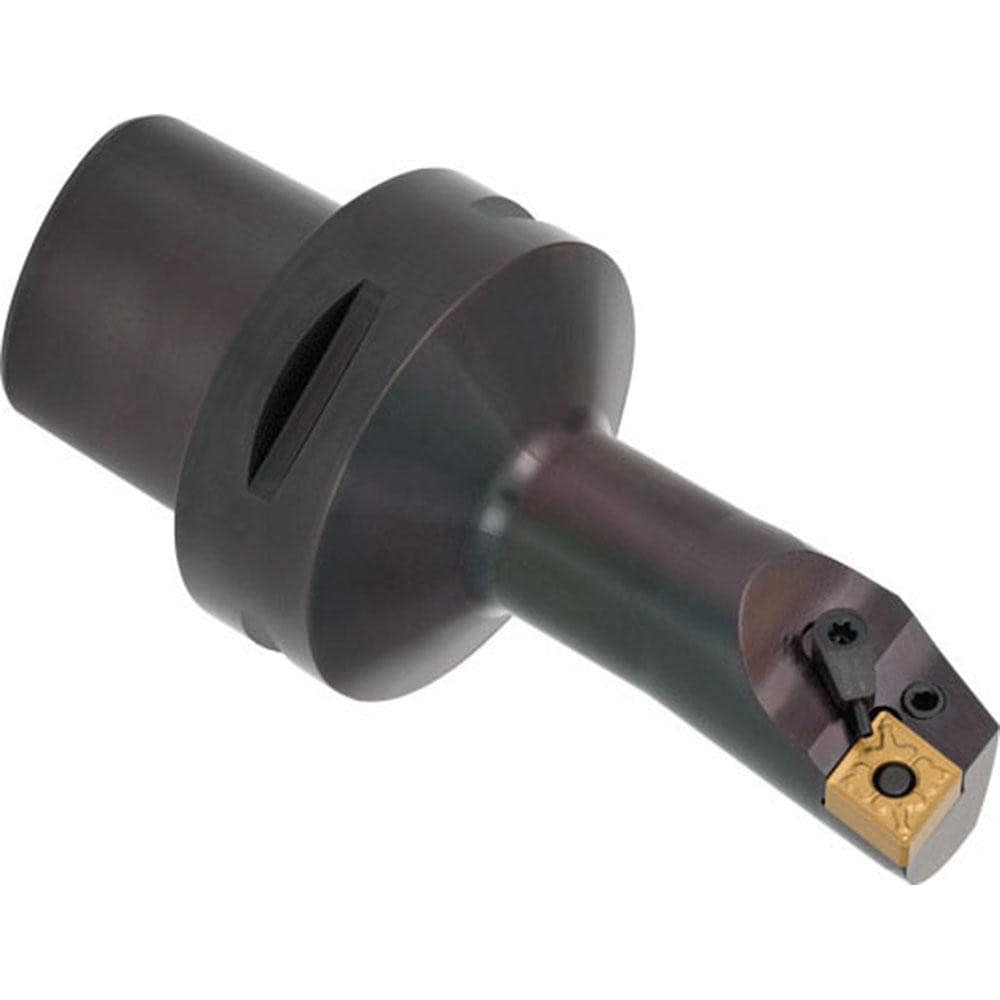

Modular Turning & Profiling Head: Left Hand
Item #: 65191439
Brand: Tungaloy
Model #: 6748655
Product Specifications
| System Size | C6 |
| Cutting Direction | Left Hand |
| Compatible Insert Style | CN.. |
| Compatible Insert Size Code | 43. |
| Internal or External | Internal & External |
| Insert Holding Method | Lever |
| Center to Cutting Edge (Decimal Inch) | 0.6690 |
| Series | PCLN |
| Head Connection Size | C6 |
| Cutting Tool Application | Boring |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 3.9370 |
| Maximum Hole Depth (Decimal Inch) | 3.9370 |
| Minimum Hole Diameter (Decimal Inch) | 1.2600 |
| UNSPSC Code | 23242100 |
| System Size | C6 |
| Cutting Direction | Left Hand |
| Compatible Insert Style | CN.. |
| Compatible Insert Size Code | 43. |
| Internal or External | Internal & External |
| Insert Holding Method | Lever |
| Center to Cutting Edge (Decimal Inch) | 0.6690 |
| Series | PCLN |
| Head Connection Size | C6 |
| Cutting Tool Application | Boring |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 3.9370 |
| Maximum Hole Depth (Decimal Inch) | 3.9370 |
| Minimum Hole Diameter (Decimal Inch) | 1.2600 |
| UNSPSC Code | 23242100 |
| MSC Part # | 65191439 |
| Mfr Part # | 6748655 |
| Country of Origin Country of Origin is subject to change | Japan |
