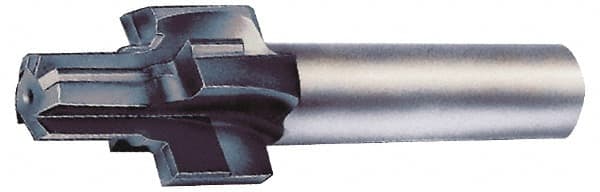

Porting Tool: 1.9331″ Spotface Dia, Reamer 1.2205″ Min Pilot Dia, 0.7402″ Pilot Length, 4-1/4″ OAL, 4 Flutes, ISO 6149-1 & SAE J2244-1
Item #: 06606974
Brand: Scientific Cutting Tools
Model #: 6149-M33X2.0-ID
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.9331 |
| Spotface Diameter (mm) | 49.10 |
| Pilot Type | Reamer |
| Port Thread Size (mm) | M33x2.00 |
| Minimum Pilot Diameter (mm) | 31.00 |
| Minimum Pilot Diameter (Decimal Inch) | 1.2205 |
| Pilot Length | 0.7402 |
| Overall Length (Inch) | 4-1/4 |
| Overall Length (Decimal Inch) | 4.2500 |
| Number Of Flutes | 4 |
| Standards | ISO 6149-1; SAE J2244-1 |
| Identification Groove | Yes |
| Seal Angle | 15 |
| Thread Type | Metric Fine |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Length (Decimal Inch) | 2.2500 |
| Maximum Pilot Diameter (Decimal Inch) | 1.3957 |
| Head Length (Decimal Inch) | 2.0000 |
| Coating/Finish | Bright |
