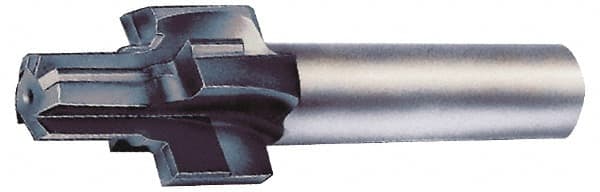

Porting Tool: 1.3425″ Spotface Dia, Reamer 0.8071″ Min Pilot Dia, 0.6102″ Pilot Length, 4 Flutes, ISO 6149-1 & SAE J2244-1
Item #: 06606958
Brand: Scientific Cutting Tools
Model #: 6149-M22X1.5-ID
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.3425 |
| Spotface Diameter (mm) | 34.10 |
| Pilot Type | Reamer |
| Port Thread Size (mm) | M22x1.50 |
| Minimum Pilot Diameter (mm) | 20.50 |
| Minimum Pilot Diameter (Decimal Inch) | 0.8071 |
| Pilot Length | 0.6102 |
| Overall Length (Decimal Inch) | 3.8000 |
| Number Of Flutes | 4 |
| Standards | ISO 6149-1; SAE J2244-1 |
| Identification Groove | Yes |
| Seal Angle | 15 |
| Thread Type | Metric Fine |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 3/4 |
| Shank Length (Decimal Inch) | 2.1200 |
| Maximum Pilot Diameter (Decimal Inch) | 0.9390 |
| Head Length (Decimal Inch) | 1.6800 |
| Coating/Finish | Bright |
