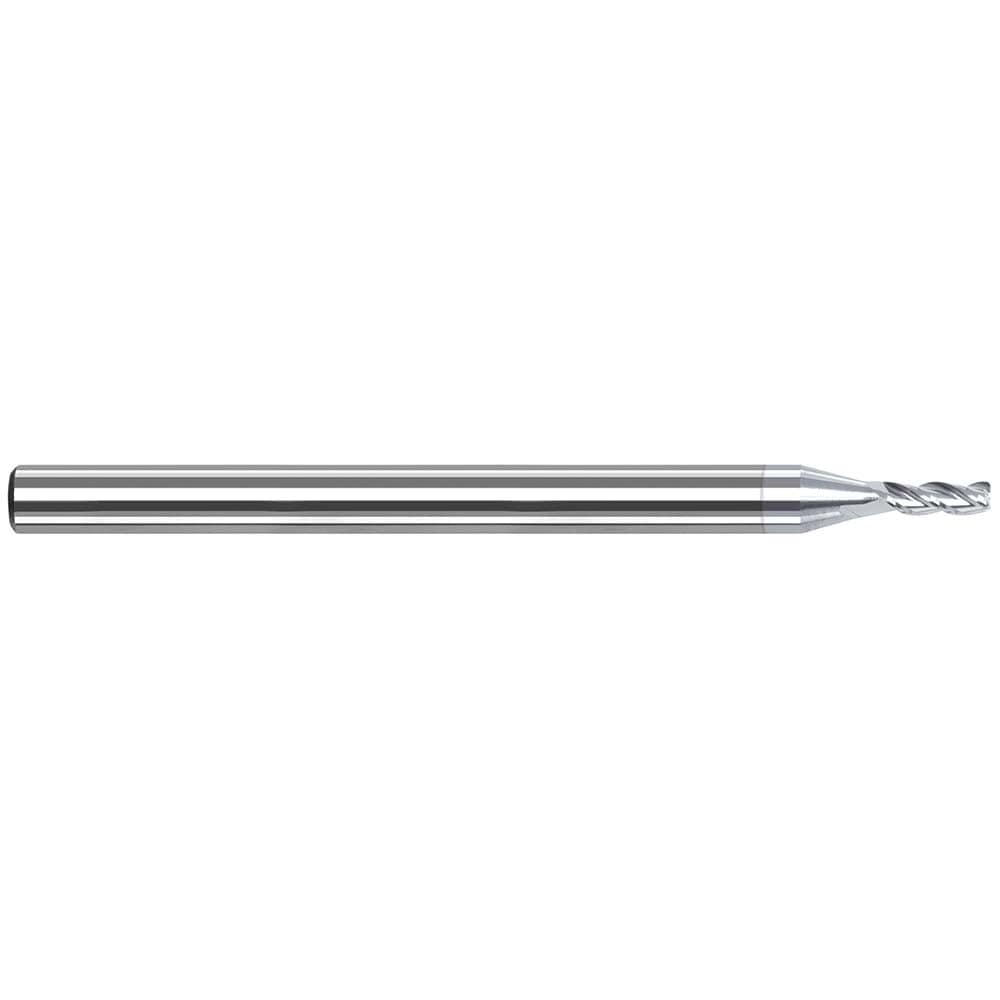

Corner Radius End Mill: 5/64" Dia, 3.00 mm LOC, 0.50 mm Radius, 3 Flute, Solid Carbide
Item #: 05908595
Brand: Harvey Tool
Model #: 725878-C8
Product Specifications
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.078 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 3.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiB2 |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0200 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (Decimal Inch) | 1.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1180 |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| UNSPSC Code | 27112803 |
| Series | Variable Helix End Mills for Aluminum Alloys - Corner Radius |
