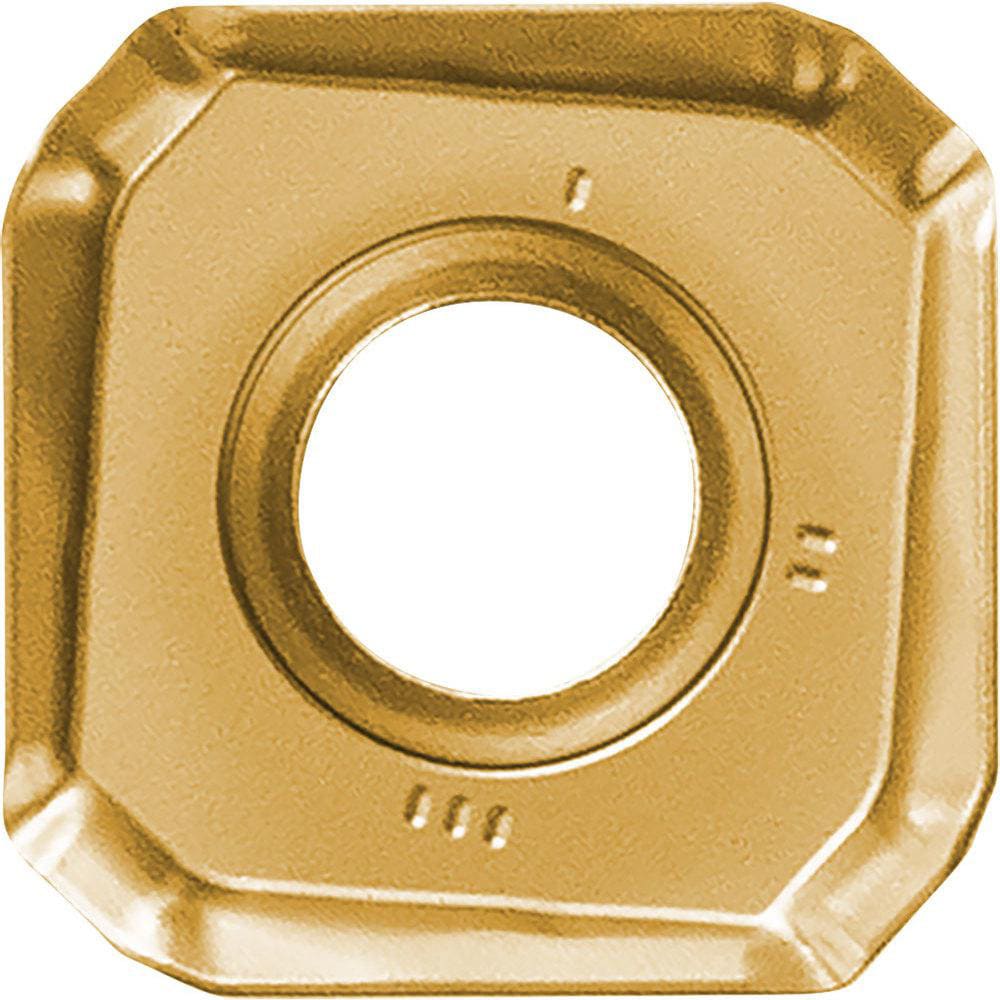

Milling Insert: SNMU1406ANER-GH CA6535, Carbide
Item #: 68863349
Brand: Kyocera
Model #: TMA40030
Product Specifications
| Insert Style | SNMU |
| Insert Size | 1406AN |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | CA6535 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2319 |
| Thickness (mm) | 5.8900 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Insert Size Code | 1406AN |
| Inscribed Circle (Decimal Inch) | 0.5787 |
| Inscribed Circle (mm) | 14.70 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Series | MB45 45 Deg Lead Milling |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.8000 |
| Hole Diameter (Decimal Inch) | 0.2284 |
| Cutting Edge Effective Length (mm) | 6.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Rake | Negative |
| Ansi Code | SNMU1406ANERGHCA6535 |
| Iso Code | SNMU1406ANER-GH |
| Standards | CA6535 |
| Manufacturers Catalog Number | SNMU1406ANERGHCA6535 |
| Chip Breaker | ER-GH |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Multi-Use Tool | Yes |
| Insert Style | SNMU |
| Insert Size | 1406AN |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | CA6535 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2319 |
| Thickness (mm) | 5.8900 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Insert Size Code | 1406AN |
| Inscribed Circle (Decimal Inch) | 0.5787 |
| Inscribed Circle (mm) | 14.70 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Series | MB45 45 Deg Lead Milling |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.8000 |
| Hole Diameter (Decimal Inch) | 0.2284 |
| Cutting Edge Effective Length (mm) | 6.00 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Rake | Negative |
| Ansi Code | SNMU1406ANERGHCA6535 |
| Iso Code | SNMU1406ANER-GH |
| Standards | CA6535 |
| Manufacturers Catalog Number | SNMU1406ANERGHCA6535 |
| Chip Breaker | ER-GH |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Multi-Use Tool | Yes |
| MSC Part # | 68863349 |
| Mfr Part # | TMA40030 |
| Country of Origin Country of Origin is subject to change | Japan |
