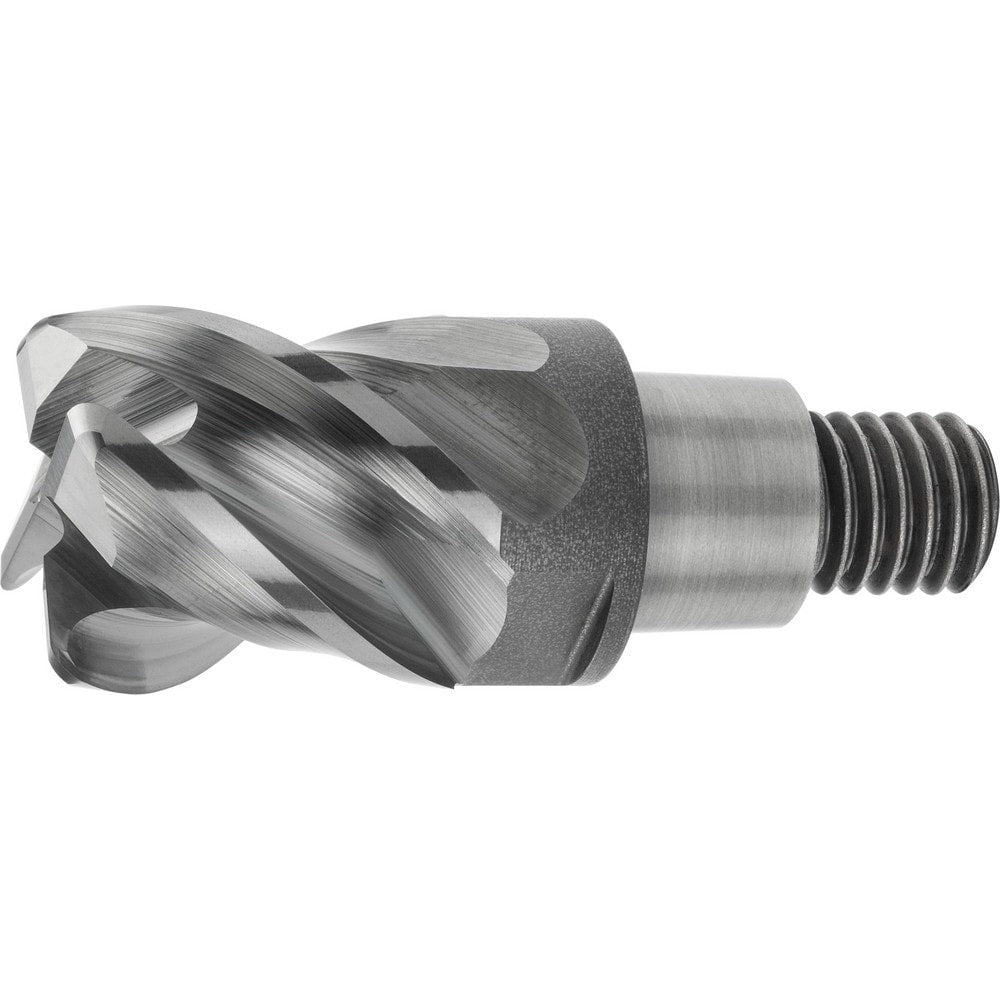

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 9.53; Mill Diameter (Inch): 3/8; Length of Cut (Inch): 3/8; Length of Cut (mm): 9.5300; Number Of Flutes: 4
Item #: 67266387
Brand: Mitsubishi
Model #: 682646
Product Specifications
| Mill Diameter (mm) | 9.53 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 3/8 |
| Length of Cut (mm) | 9.5300 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 29.1100 |
| Corner Radius (mm) | 0.76 |
| Coating/Finish | AlCrN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0300 |
| Overall Length (Decimal Inch) | 1.1460 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Centercutting | No |
| Connection Type | iMX10 |
| Flute Type | Helical |
| Minimum Helix Angle | 42 |
| Maximum Helix Angle | 45 |
| Material Grade | Solid Carbide |
| Helix Angle | Variable |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Variable Index | Yes |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 9.53 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 3/8 |
| Length of Cut (mm) | 9.5300 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 29.1100 |
| Corner Radius (mm) | 0.76 |
| Coating/Finish | AlCrN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0300 |
| Overall Length (Decimal Inch) | 1.1460 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Centercutting | No |
| Connection Type | iMX10 |
| Flute Type | Helical |
| Minimum Helix Angle | 42 |
| Maximum Helix Angle | 45 |
| Material Grade | Solid Carbide |
| Helix Angle | Variable |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Variable Index | Yes |
| UNSPSC Code | 27112803 |
| MSC Part # | 67266387 |
| Mfr Part # | 682646 |
| Country of Origin Country of Origin is subject to change | Japan |
