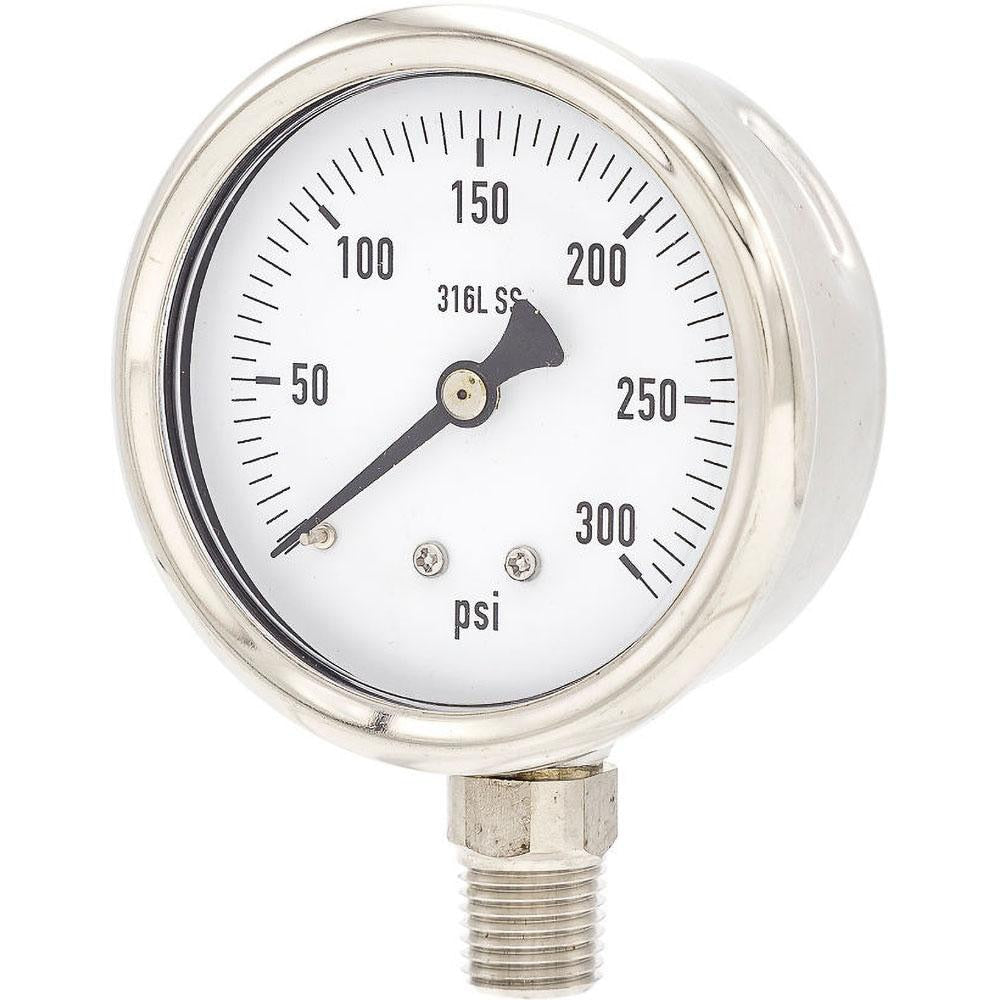

Brand: PIC Gauges / Part #: PRO-301D-254H
Item #: 08728446
Brand: PIC Gauges
Model #: PRO-301D-254H
Product Specifications
| Gauge Type | Industrial Pressure Gauges |
| Scale Type | Single |
| Accuracy (%) | 2-1-2% |
| Dial Type | Analog |
| Thread Type | 1/4" MNPT |
| Bourdon Tube Material | 316 Stainless Steel |
| Type of Liquid Filler | No-Fill |
| Mount Type | Lower |
| Wetted Parts Material | Stainless Steel |
| Dial Diameter (Decimal Inch) | 2.5000 |
| Minimum Pressure (psi) | 0.00 |
| Maximum Pressure (Psi - 2 Decimals) | 300.00 |
| Minimum Hg | 0 |
| Maximum Hg | 300 |
| Liquid Filled | No |
| Case Material | Stainless Steel |
| Lens Material | Polycarbonate |
| Thread Size | 1/4 in NPT |
| Minimum Working Temperature (Deg F) | -30 |
| Maximum Working Temperature (F) | 180.000 |
| Minimum Working Temperature (Deg C) | -34 |
| Maximum Working Temprature (Deg C) | 82 |
